10 Amp MPPT Solar Charge Controller

10 Amp MPPT Solar Charge Controller

MPPT1050-DCLi is a sort of 10 amp MPPT solar charge controller. It means 12V system voltage, 10A maximum charge current and 60W maximum load power. Street light solar controller within LED driver have dimming function. That means not only you could set lightness but also the smart solar charge...

Send InquiryChat Now

Product Details

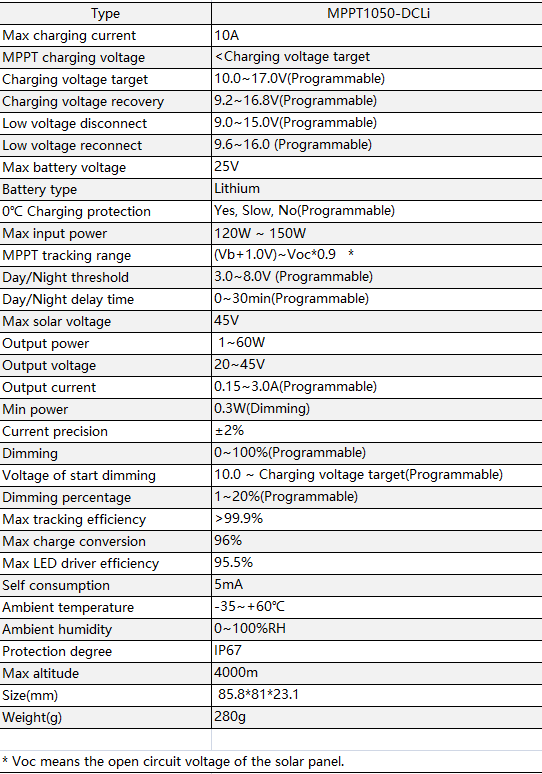

MPPT1050-DCLi is a sort of 10 amp MPPT solar charge controller.

It means 12V system voltage, 10A maximum charge current and 60W maximum load power.


Street light solar controller within LED driver have dimming function. That means not only you could set lightness but also the smart solar charge controller automatic adjust lightness when battery voltage is low.

We call it ”auto dimming mode”.

The “Dim Auto” item of S-UNIT is set”yes”,set”Dim V” and “Dim %” at the same time,press “send”key to set up the controller.when the battery voltage is lower than the voltage of “Dim V”,it starts to dimming automatically.Battery voltage reduces per 0.1V,load current descreased according to the set of “Dim %”, the minimum output current is 10% of the setting current. If the digital solar charge controller is set to ”Dim” or” Auto Dim”, the minimum output power can be as low as 0.3W. Dimming voltage should not be greater than the voltage of “CVT”(charging votlage target).When the battery voltage is reduced to closed to the LVD voltage,the output current of the controller is reduced to 0.3W.

365 mode is another advantage feature.

It is based on the battery power(charge power,discharge power) energy control.If the battery charge more during the day,the discharge more at night.The LED light solar controller can calculate the dimming ratio according to the charging power and the remaining power of battery,so as to avoid the load shutdown due to the low battery voltage.By the way,when using the 365 mode,the system should be designed to meet the requirements of three rainy days.
