10 Amp Solar Controller

10 Amp Solar Controller

Our solar charge controller Shine-EU series is designed for 12V solar system, 10A or 15A solar regulator is now available.Standard products are only for lead acid battery,if your battery is lithium battery,we also could do,customerize for you,our engineer will modify the software for battery...

Send Inquiry

Product Details

Our solar charge controller Shine-EU series is designed for 12V solar system, 10A or 15A solar regulator is now available.Standard products are only for lead acid battery,if your battery is lithium battery,we also could do,customerize for you,our engineer will modify the software for battery voltage according to your demand.

Another good feature is the USB port which is 5V 2A,you could charge phone or smart devices.

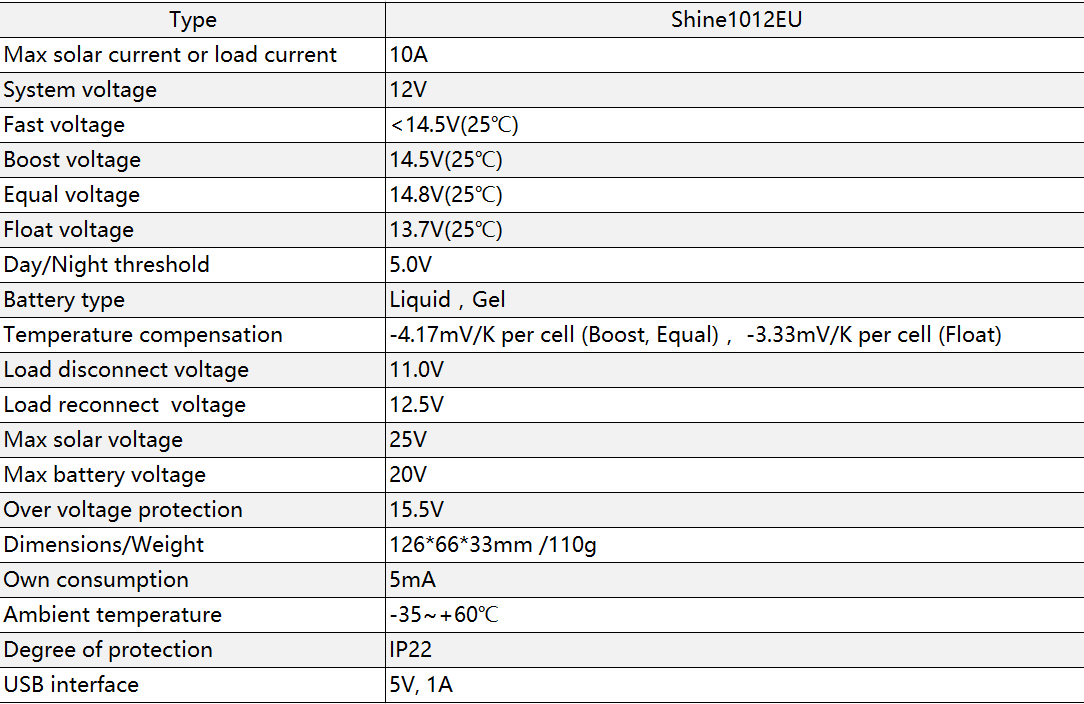

1512357981

As you looked the picture,the colour of 12 volt solar charge controller is blue,the case material is ABS flame retardant.For the structure,there are three groups terminals,panel,battery and load terminals.Firstly,conect load terminals,then connect battery positive pole and negative pole,finally,connect panel terminals.There is a switch on the controller,it is used to control the controller work or not,press the button,the controller will work,press it again,the controller will not work.But it is only for 24 hours sytem working mode.It you want to use it for light,you could choose D2D mode,long pushing the switch.How to know details?There are two info leds,green and yellow represent different battery type and work mode.Actually,we defualt the battery is liquid and working mode is 24 hours.

There are also three led lights which are used to show the battery capacity.Red light means below 25% of capacity,yellow means 25%~75% and green means over 75%.You could adjust your operation according the informations.

29-1主图
