Shine-EU series is a sort of solar charge controller 12V 10A 15A with USB Shine-EU series is specially designed to meet the needs of solar home systems or other small system.It is ver economic solar charge controller USB port 5V 1A. The controller is equipped with 5 LEDS.In normal operation,the...

Send InquiryChat Now

Product Details

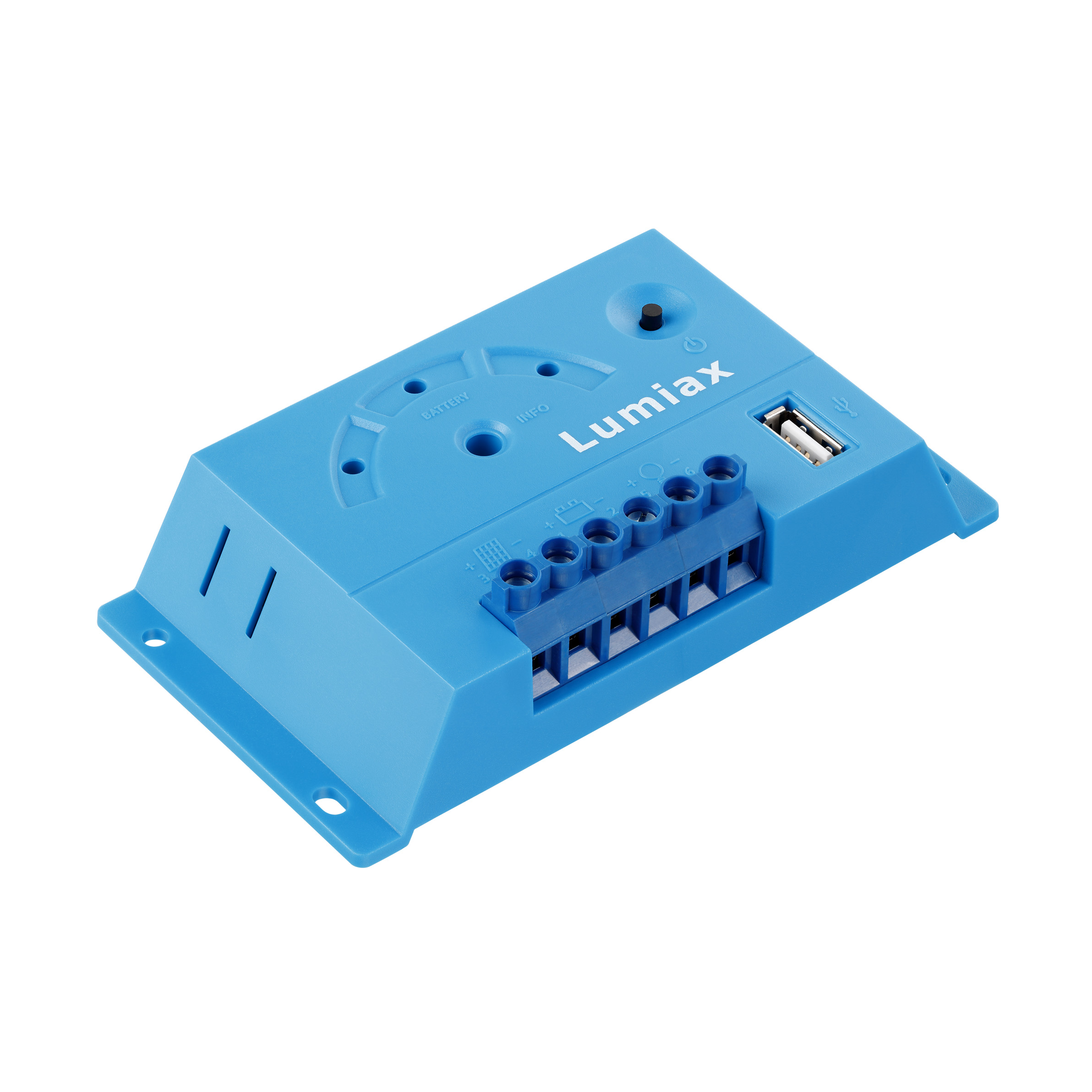

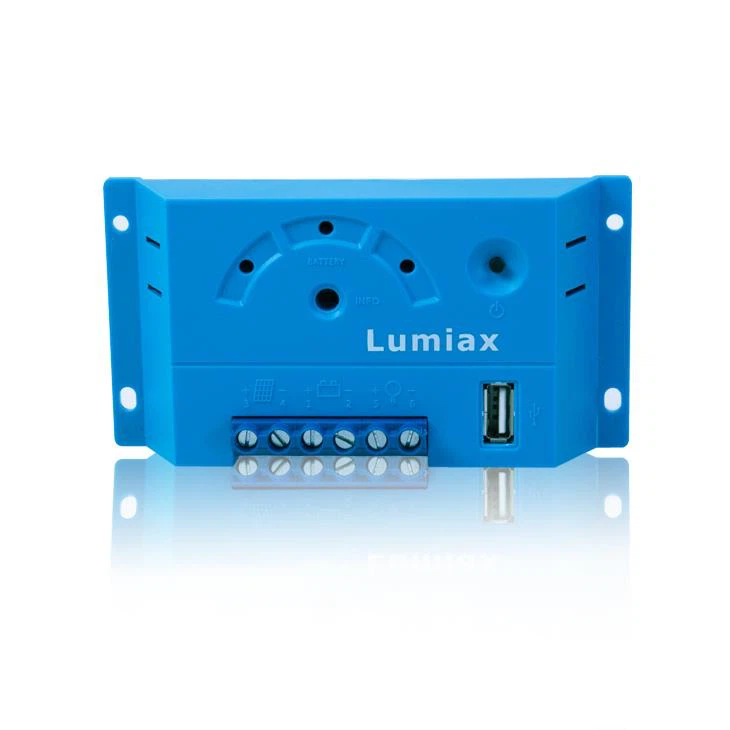

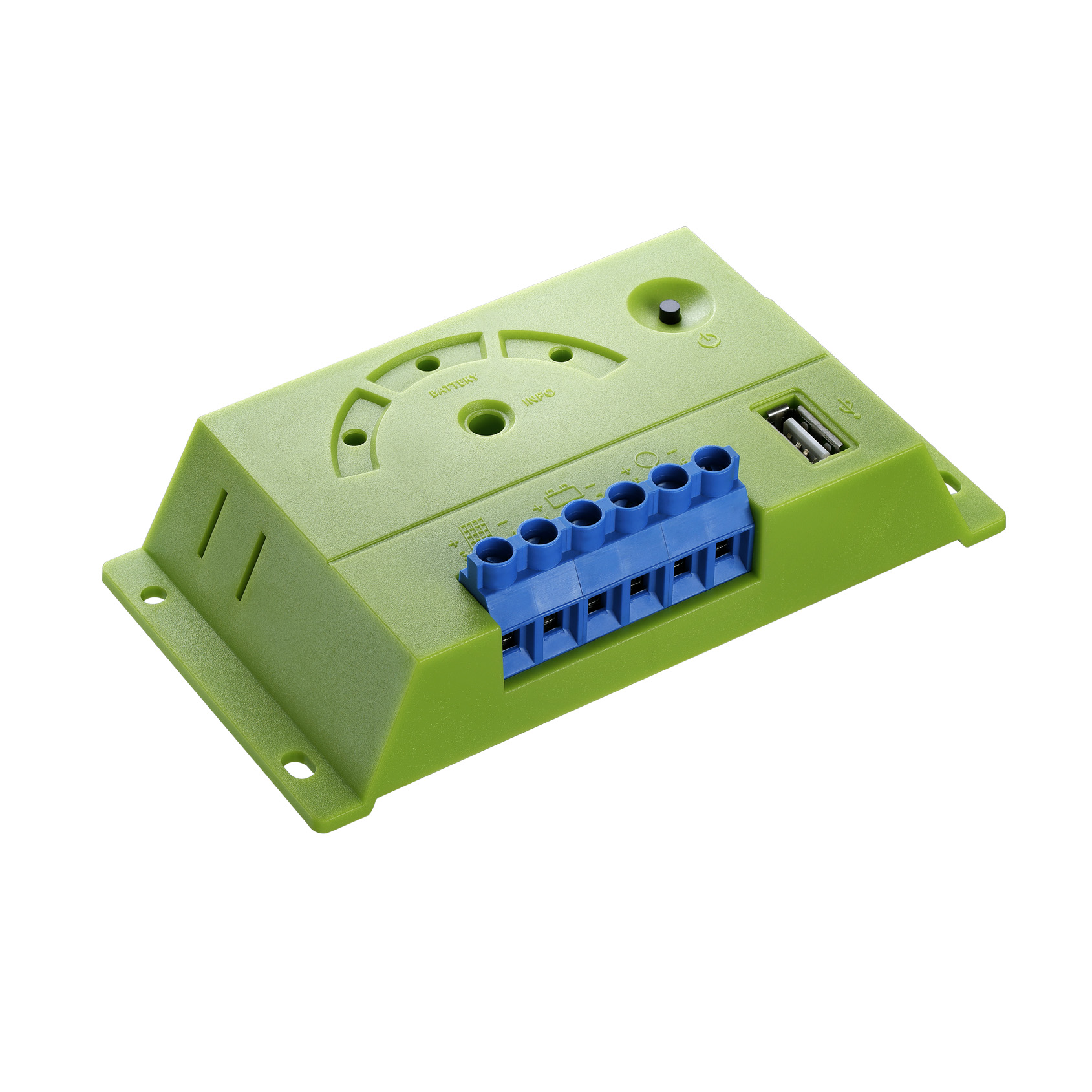

Shine-EU series is a sort of solar charge controller 12V 10A 15A with USB

Shine-EU series is specially designed to meet the needs of solar home systems or other small system.It is ver economic solar charge controller USB port 5V 1A.

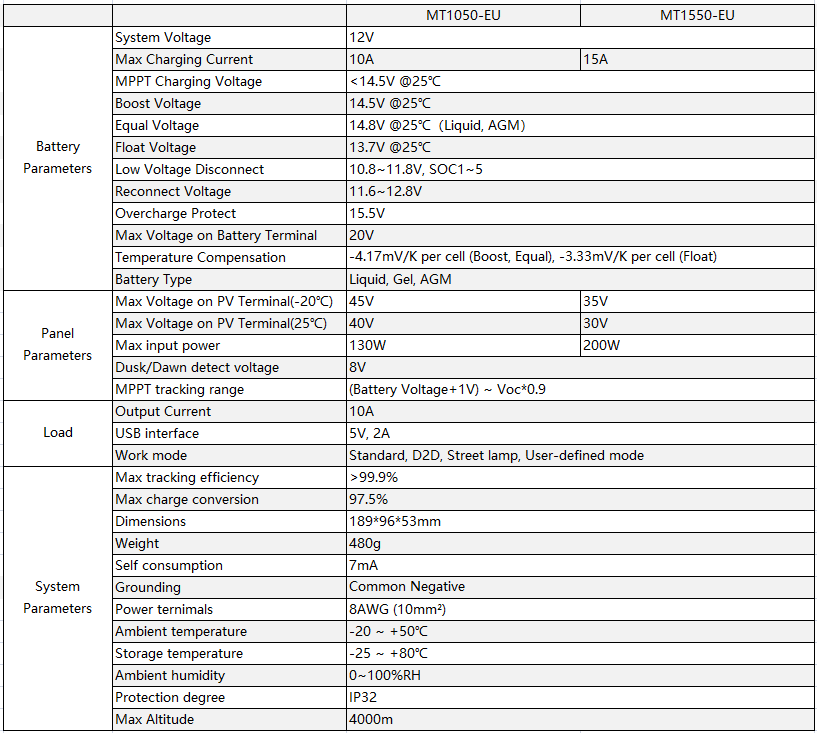

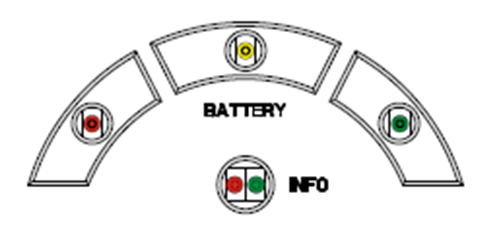

The controller is equipped with 5 LEDS.In normal operation,the controller shows charge or discharge status,battery capacity and load status.


1.       Battery Capacity display

Red on,Energy of Battery <25%

Yellow on,Energy of Battery 25~75%

Green on,Energy of Battery >75%

The percentage corresponds to the available energy until low voltage disconnect in relation to a fully charged battery.

2.       Self Test

As soon as the controller is supplied with battery,it starts a self test routine.Then the display changes to normal operation.

3.       Work mode,programming function

You enter the programming mode with a long push on the button,then the Battery Green  an d Yellow LED will be on,the different states of the INFO led indicator different battery types and work modes.The factory default setting is Liquid battery and System mode.

System mode mean work 24 hours.Another work mode is from dusk to dawn

4.       Low voltage protect

To protect the battery from being deeply discharged,the Shine-EU series controller will automatically cut off the load when the battery voltage down to 11.0V.

In D2D mode,if the controller goes into low voltge protection,it will restore only when the battery bein recharged and the voltage reaching the reconnect voltage(12.5V).
