RV MPPT Solar Charge Controller

RV MPPT Solar Charge Controller

RV solar sytem is very popular in European, Australia and America. Except solar panel on the roof and battery, there is very important accessories solar charge controller or solar regulator in this sytem. It is the heart of any solar power installation on an RV or boat. It is the gatekeeper...

Send Inquiry

Product Details

RV MPPT Solar Charge Controller

RV solar sytem is very popular in European, Australia and America. Except solar panel on the roof and battery, there is very important accessories solar charge controller or solar regulator in this sytem. It is the heart of any solar power installation on an RV or boat. It is the gatekeeper between the solar panels and the batteries, and it determines how much of the sun’s energy that is available to the solar panels will actually be converted into electrical current to charge the batteries. Also it will protect the battery charging and discharging.Without it, the energy from panel maybe damage to the battery. And battery life will be shorten. Some charge controllers can also perform temperature compensation and equalization, which enhance the ability to maintain the health, maximize capacity, and prolong the life of the batteries. So picking the right charge controller for your PV solar system is very important. MPPT controllers will produce more 20% energy than PWM solar charge controller to RV battery. As MPPT ones automatically find the voltage at which panels produce power most efficiently. That is the most economic way. Now most customers perfer MPPT regulators rather than traditional PWM ones.

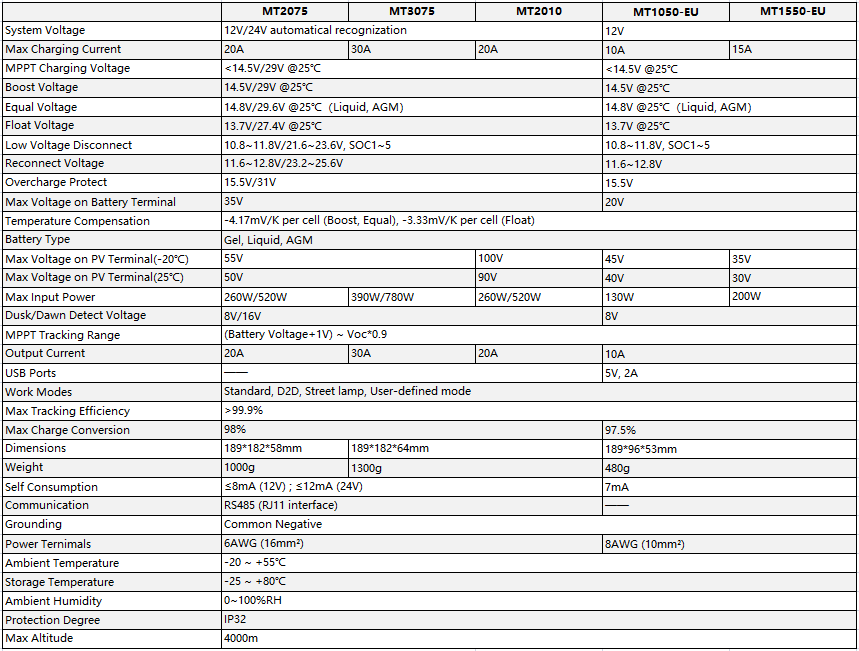

Our Magic series are the best choice, except it have high tracking efficiency and conversion efficiency, all components and material are purchased from world brand.For example,MOS is from IR,MCU is from ST,as we have another sister company, selling the electrical components, it is the agent of ARROW,we have the advantages to get components with good quality and low price.

If you have any request for solar home system controllers, pls refer to the website: www.lumiax.com, to find suitable products.


Spain recycling energy occupies 45.8% in first half year

According to the data of REE(A power grid operator), from Jan. to Jun., the recycling energy occupies 45.8% of the whole generated power in Spain. Year-on-year growth is 8.5%. 30a solar controller

Year-on-year growth of 10.4% for wind generated power, reaching 27779G WH, occupies 22.6% of the whole generated power. So we can see that wind power is the major resource, next is nuclear power occupying 20.6% and water power occupying 16.9%. 10a PWM solar charge controller

Be benefit from the increasing rain, especially compared with the dry year 2017, the water power has increased 74% in first half year, reaching 20821G WH.

In first half year, solar generated power occupies 4.6% of the country generated power. 24v solar regulator

Since the year 2007 to 2017, Spain recycling energy power increased 53% rapid in power system. REE expresses that new project is under development, which may connect 30500 GW power to the grid.

In first half year, Spain power requires about 126411G WH power.


Hot Tags: rv mppt solar charge controller, China, manufacturers, wholesale, cheap
