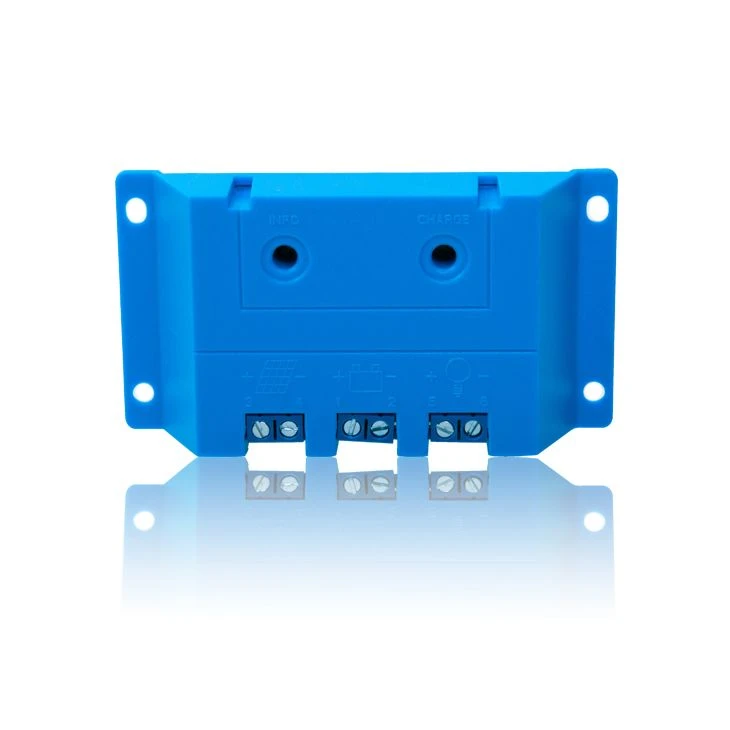

5a Solar Charge Controller

Shine05 is a classical sort of 5a solar charge controller. It means 12V system voltage as well as 5A charge and discharge current. 5a solar charge controllers are especially designed for solar home system, with the best cost-effective. Easy to understand LED status indication: Green LED: Slow...

Send Inquiry

Product Details

Shine05 is a classical sort of 5a solar charge controller.

It means 12V system voltage as well as 5A charge and discharge current.

5a solar charge controllers are especially designed for solar home system, with the best cost-effective.



Easy to understand LED status indication:

Green LED: Slow flash (1s on /1s off) on behalf of the controller in the state of float charging; Flash (0.4s/0.4s) on behalf of the battery is connected to the controller, at day time; Fast flash (0.1s/0.1s) on behalf of controller is during the equal charging;

If the green LED is always on, indicate that the battery is connected to the controller, and the time is at night.

Red LED: Slow flash (1s /1s) represents low voltage protection of the controller.

If the red LED is always on, represents short circuit or over current or over temperature state of the controller;

If the red LED always off, the controller is working normally;

If the red LED and green LED flash 1s at the same time, which represents the self checking while start the controller; If keep off at the same time, indicate not connect with the battery.

27-1_副本.jpg 27-2_副本.jpg
