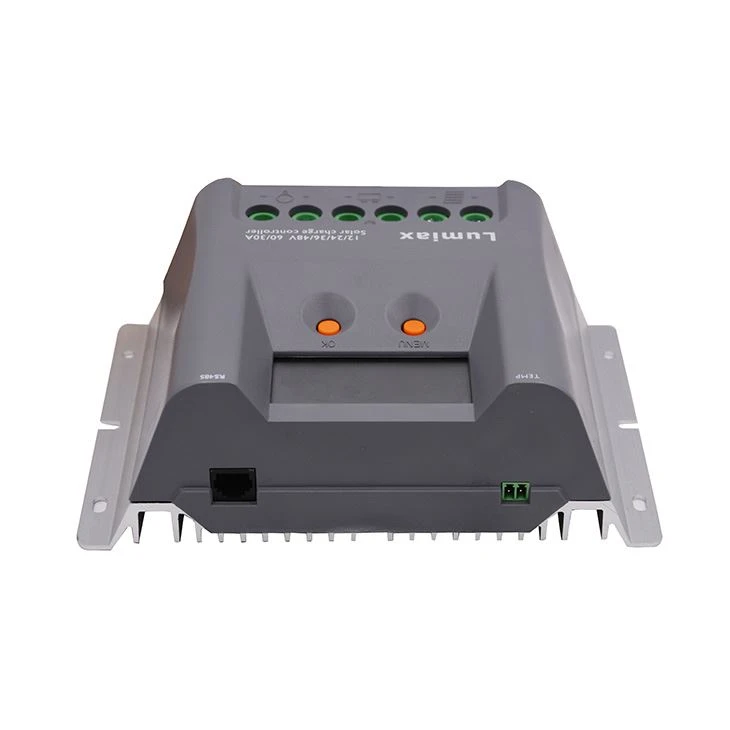

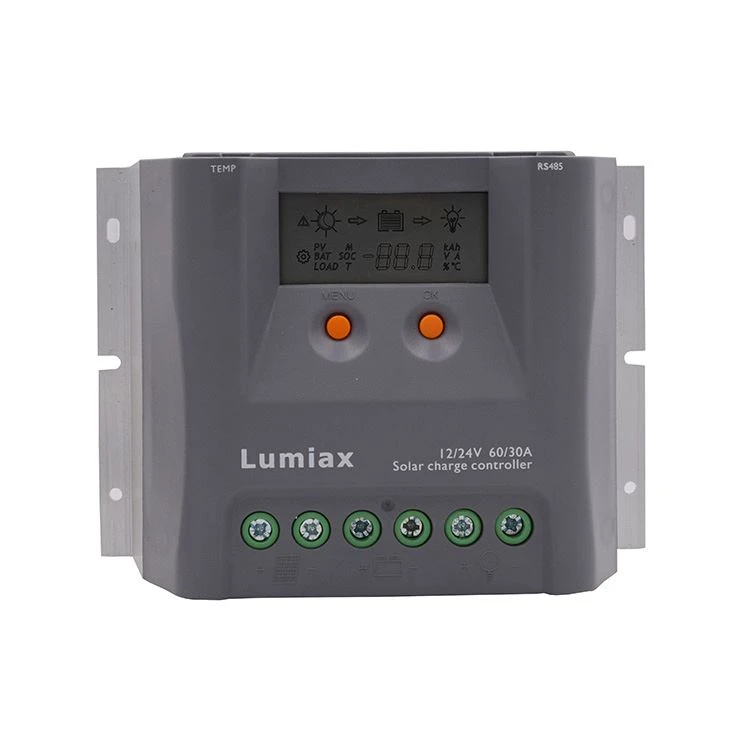

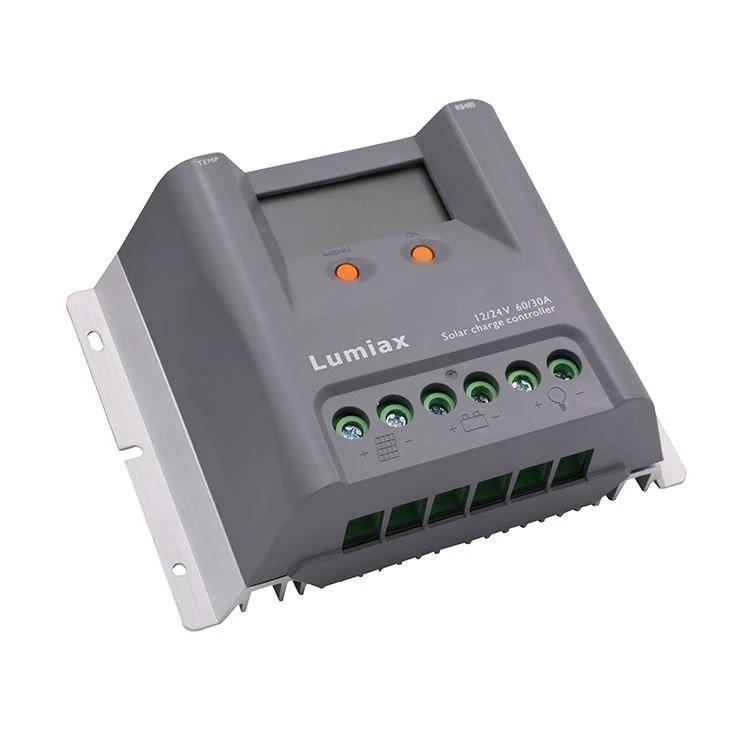

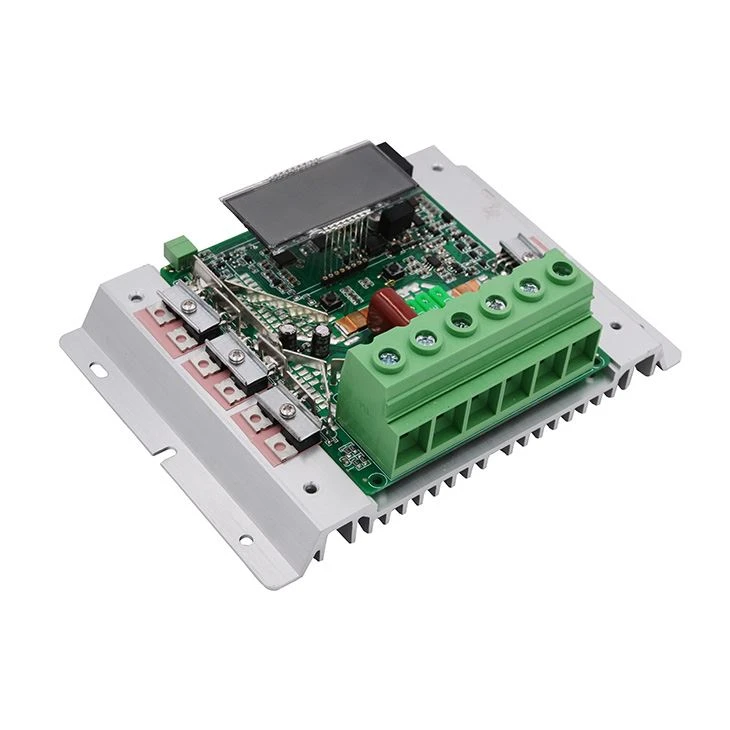

60a Solar Regulator

60a Solar Regulator

Max60 is a sort of 60a solar regulator. It means 12V/24V automatic recognition as well as 60A maximum charging and discharging current. Solar water pumps (also known as photovoltaic water pumps) are the most attractive water supply methods in the sun-rich areas of the world, especially in remote...

Send Inquiry

Product Details

Max60 is a sort of 60a solar regulator.

It means 12V/24V automatic recognition as well as 60A maximum charging and discharging current.

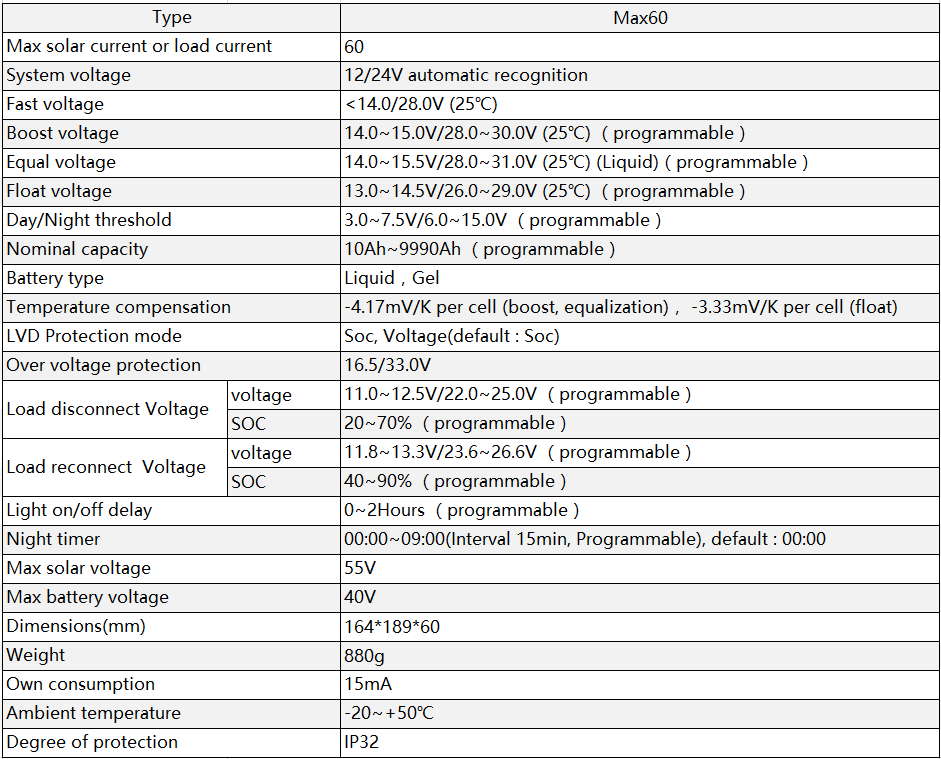

1512356351(1)

Solar water pumps (also known as photovoltaic water pumps) are the most attractive water supply methods in the sun-rich areas of the world, especially in remote areas where electricity and electricity are scarce. Using solar energy that is available everywhere, inexhaustible solar energy, the system is fully automatic. It is a green energy system that combines economics, reliability and environmental benefits. It is a work-out, sunset break, no need for personnel to watch, and maintenance workload can be minimized.60a solar charge controller

System composition:

The photovoltaic array mainly converts the solar light energy into electrical energy to provide working power to the load water pump motor.

Photovoltaic water pump inverter or controller

Control and adjust the operation of the solar water pump, use the electric energy generated by the solar array to drive the water pump, and adjust the output frequency in real time according to the change of the sunshine intensity, so that the output power is close to the maximum power of the solar array.solar charge controller 12V/24V

Motor (drive motor)

The drive motors used in different systems are also different. At present, in the low-power level photovoltaic pump system, in order to obtain the highest possible system efficiency, DC brushless permanent magnet motor drive is often used. In the large-scale photovoltaic pump system, there are still many AC asynchronous drive methods, but Due to the continuous development of modern control technology, in order to further increase the amount of water provided by the unit peak tile, a trend has been taken to replace the multi-machine group control technology that achieves flexible control by multiple pumps.PWM solar charge controller

Water pump

For photovoltaic pump systems, the choice of pump type is also important. In a system with low power, if the user requires a high lift but a small flow, a positive displacement pump should be selected. In other cases, a centrifugal or axial flow pump may be used. The choice and consideration of the pump type for the PV pump system.

Water tower and water storage facility

If the PV pump system is used in cold regions in winter (such as the western part of China), it is advisable to use anti-freezing water storage facilities, such as double-deck tanks or water towers with vacuum or solid insulation materials in the middle, and the water diversion pipelines should also be resistant to low temperature materials. Antifreeze treatment.

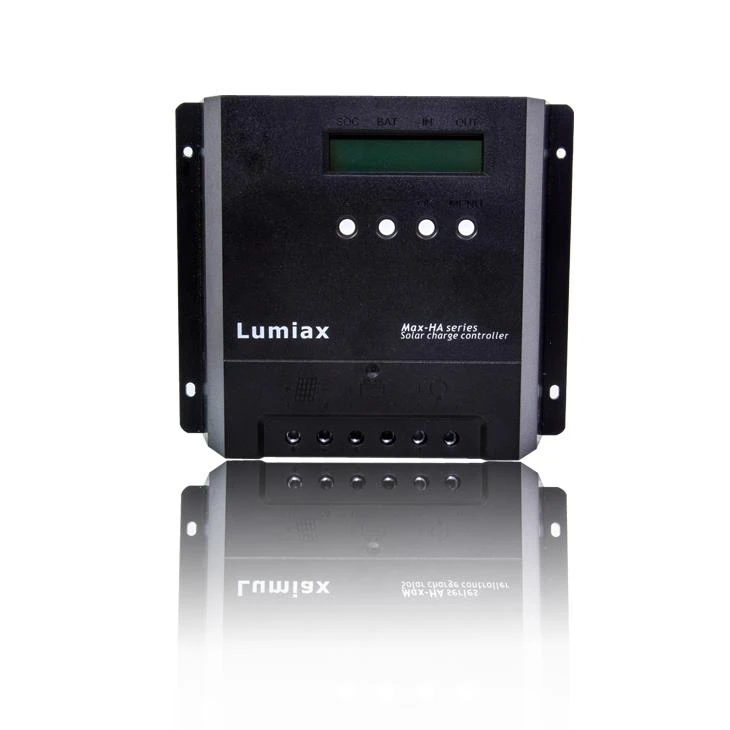

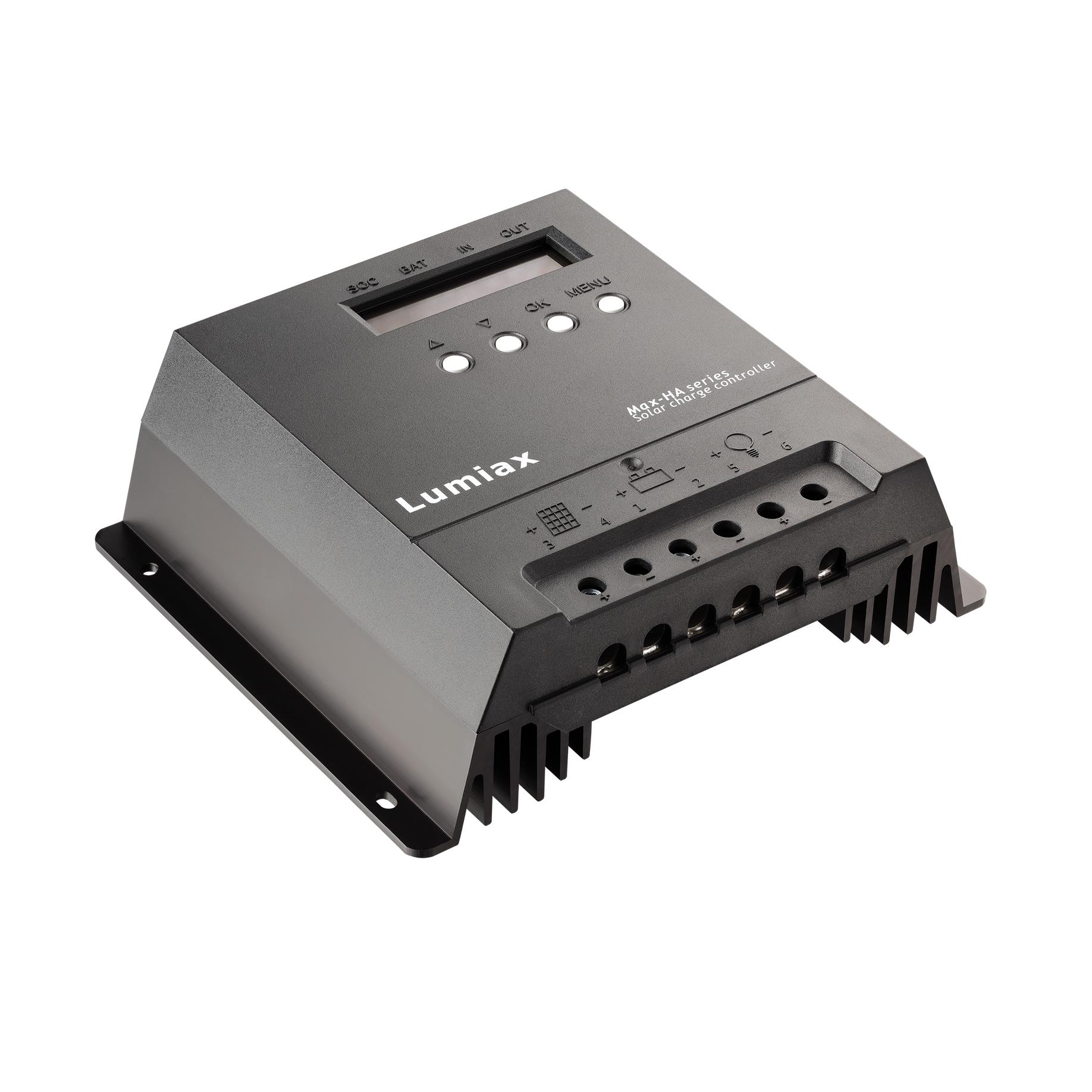

23-123-2


Hot Tags: 60a solar regulator, China, manufacturers, wholesale, cheap
