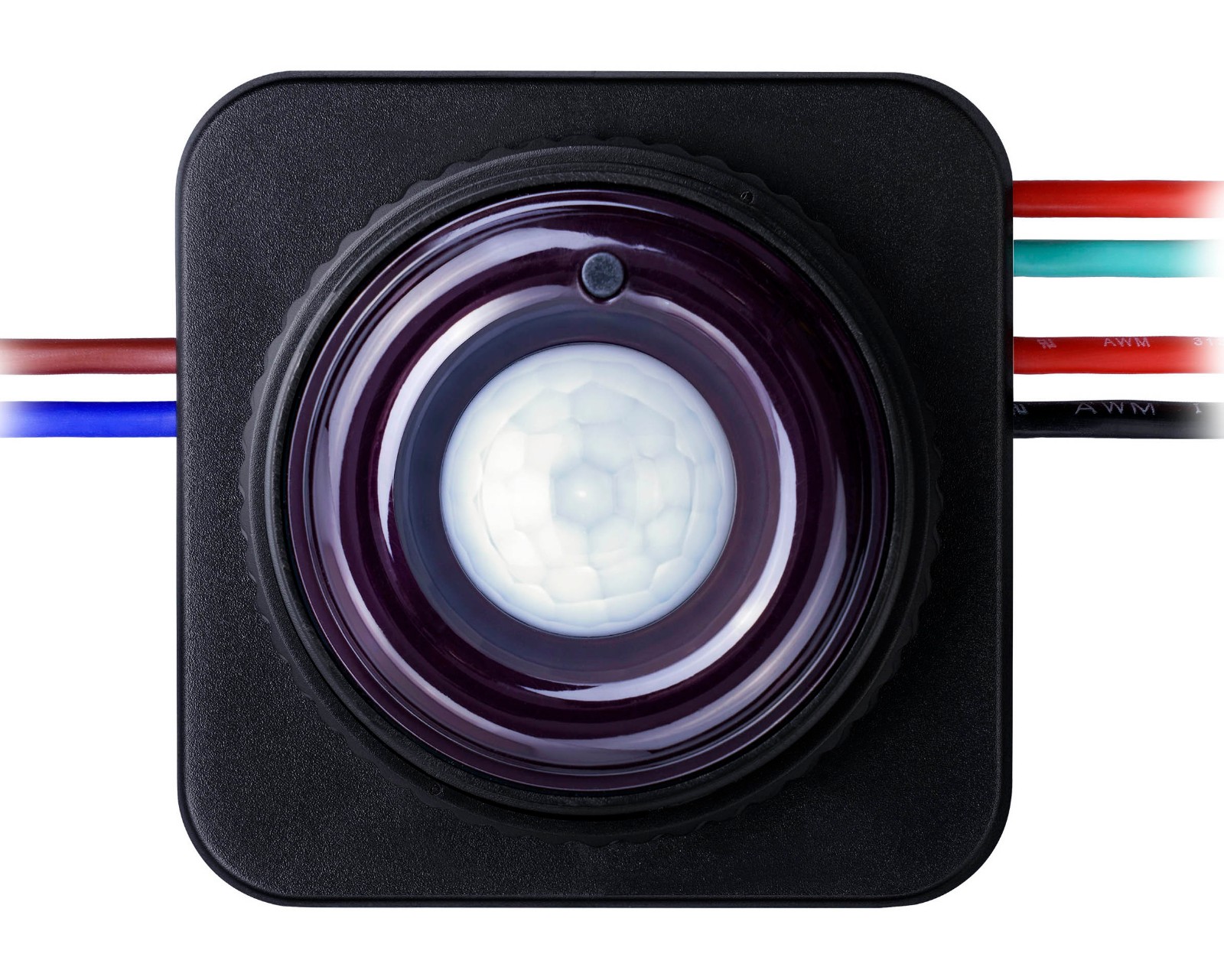

Solar Panel Charge Controller

SMR1006-DCN5MLiR is a sort of solar panel charge controller. It means 12V/24V automatic recognition as well as 10A maximum charging and discharging current. This solar panel charge controller is the latest research and development of solar infrared induction machine. It integrates solar charge...

Send Inquiry

Product Details

      SMR1006-DCN5MLiR is a sort of solar panel charge controller.

      It means 12V/24V automatic recognition as well as 10A maximum charging and discharging current.


This solar panel charge controller is the latest research and development of solar infrared induction machine. It integrates solar charge controller and infrared inductive probe into one, which can reduce the space occupied and greatly reduce the project cost.

u  Can output constant current, output current can be set.

u  Automatic power balance 365 mode, 365 days can be lit.

u  5 stages time and dimming can be adjusted,dimming 0~100%

u  Can read parameters and running status

u  Suitable for LiFePO4 battery

u  If battery voltage is low, it can be set to dimming automatically

u  Dimming start voltage and dimming percentage can be set

u  Auto sleeping during transportation

u  Low temperature charging protection

u  When BMS power off because of LVD, it can activate the system automatically

u  Charging target voltage and charging recovery voltage can be set

u  Day/Night threshold can adjust automatically

u  Remote Unit to configure, with LCD display

u  IP67, Strong and durable aluminum case

u  Full automatic electronic protect function
