Street Light Solar Charge Controller

MPPT1050-DCLiR is a sort of Street light solar charge controller. MPPT1050-DCLiR is based on the technology of infrared automatic control products. When someone enters the induction range, the special sensors will detect the change of the human body infrared spectrum, then automatically...

Send Inquiry

Product Details

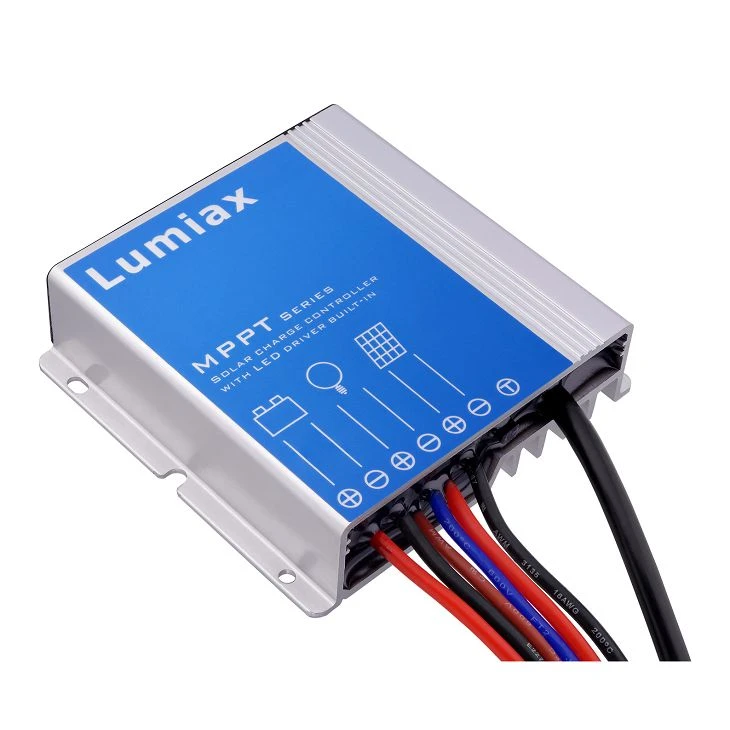

MPPT1050-DCLiR is a sort of Street light solar charge controller.

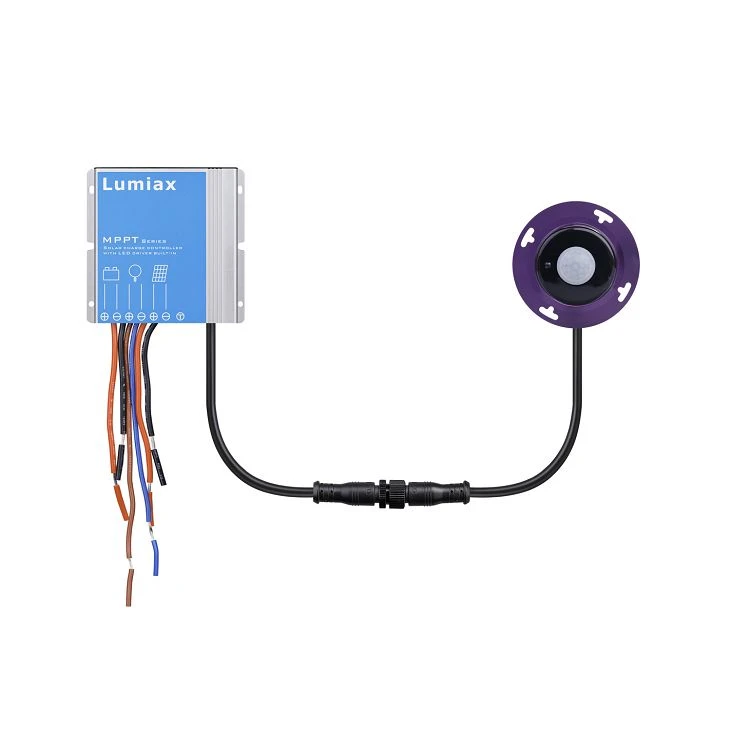

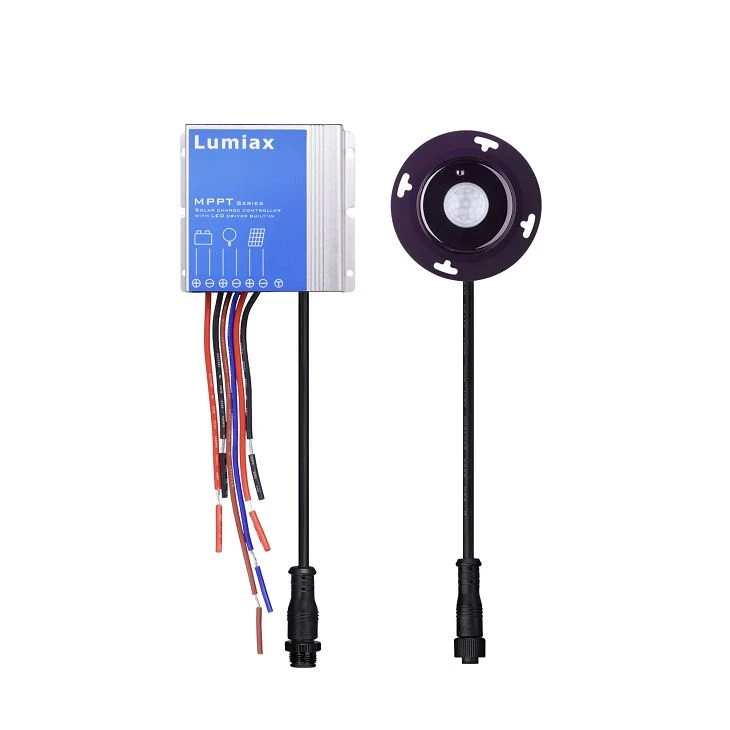

MPPT1050-DCLiR is based on the technology of infrared automatic control products. When someone enters the induction range, the special sensors will detect the change of the human body infrared spectrum, then automatically connected to the load. If people don't leave the induction range, the light will be continuous light. When the person leaves, the load will be automatically turned off. MPPT1050-DCLiR is a really friendly and convenient, safe and energy-saving Street light solar charge controller.

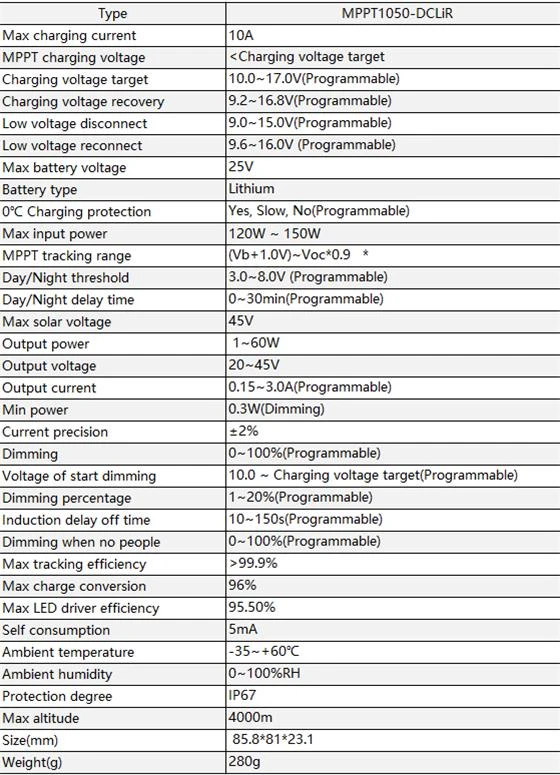

The street light solar charge controller is fit for 12V system voltage, 10A maximum charging current, 60W maximum load power, Innovative MPPT technology, tracking efficiency >99%.

Full digital technology, high charge conversion efficiency Up to 96%, and discharge conversion efficiency up to 95.5%.

Self consumption: 6mA

Load output power: 1-60w, output voltage range: 20-45V, Load current setting range: 0.1-3.0A, Min working power: 0.3W (power reduction),Load current accuracy:±2%

Max Power of Solar panel: 100W (3 series)~120W(4series).

MPPT tracking range: (Battery voltage + 1V) ~ 0.9 * Voc

Max voltage of solar panel VOC: 45V

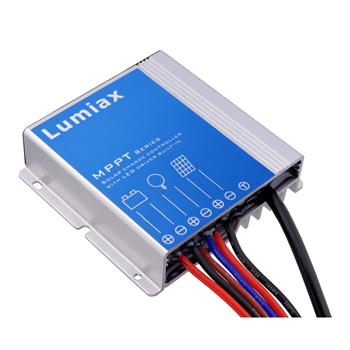

48-1_副本.jpg 48-2_副本.jpg
