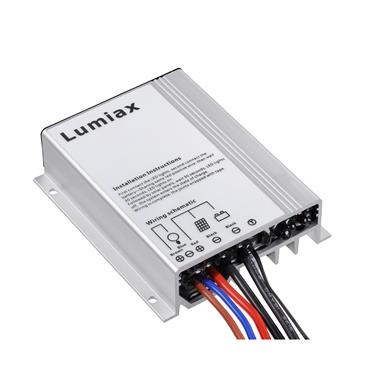

10 Amp Solar Charge Controller

SMR1012-DCN5 is a sort of 10 amp solar charge controller. It means 12V/24V automatic recognition, 10A maximum charging current, 60/120W maximum load power. Auto dimming function: The "Dim Auto" item of S-Unit is set to "Yes", set "Dim V" and "Dim %" at the...

Send Inquiry

Product Details

SMR1012-DCN5 is a sort of 10 amp solar charge controller.

It means 12V/24V automatic recognition, 10A maximum charging current, 60/120W maximum load power.



Auto dimming function:

The "Dim Auto" item of S-Unit is set to "Yes", set "Dim V" and "Dim %" at the same time, press the "Send" key to set up the controller. When the battery voltage is lower than the voltage of "Dim V”, it starts to dim automatically. Every time the battery voltage reduces 0.1V/0.2V, load current decreases according to the set of "Dim %", the minimum output current is 30% of the setting current.

“Dim” or “Auto Dim”, the minimum output current can be as low as 30mA.

"Dim V" setting range: 11.8-12.5V/23.6-25V. If exceeds 12.5/25V, the controller works as 12.5/25V; If lower than 11.8/23.6V, then set unsuccessful.

35-1_副本.jpg 35-2_副本.jpg
