EP350-12X

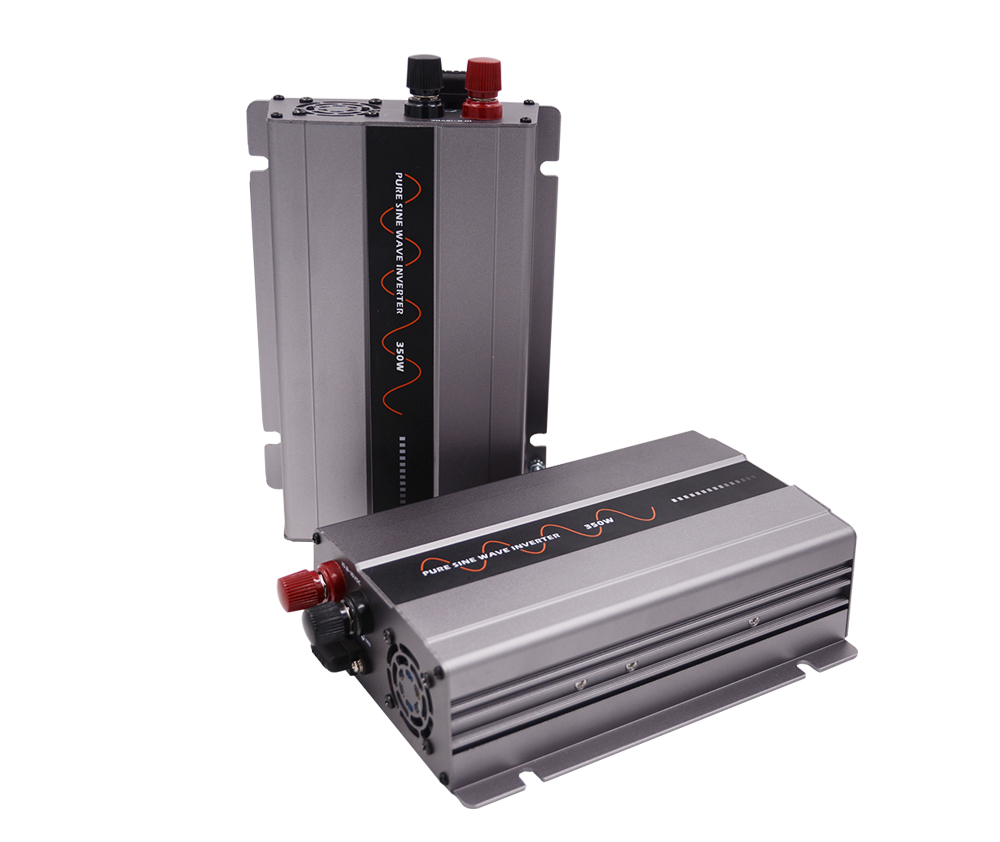

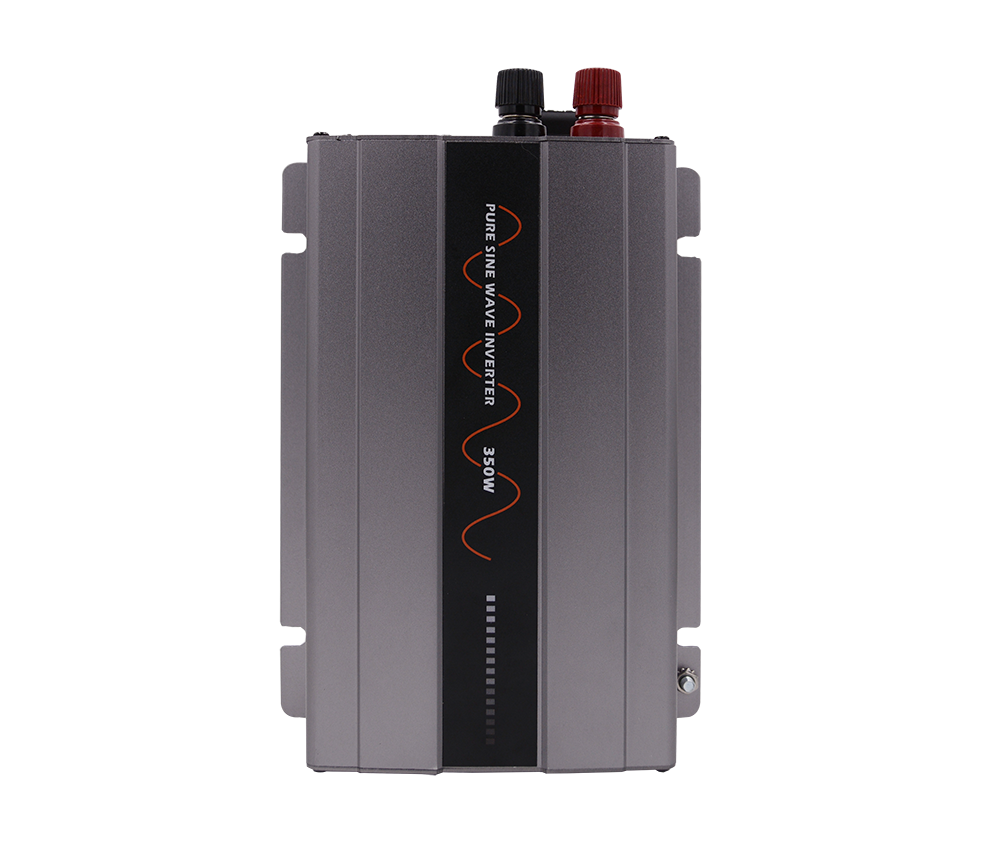

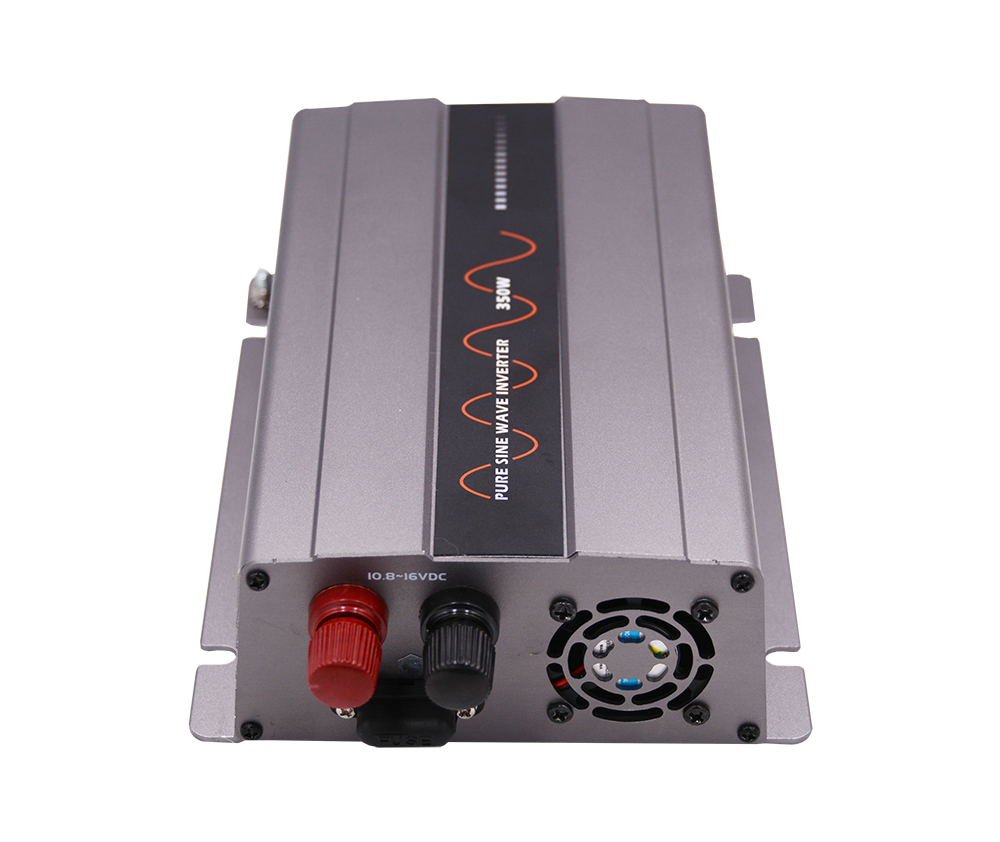

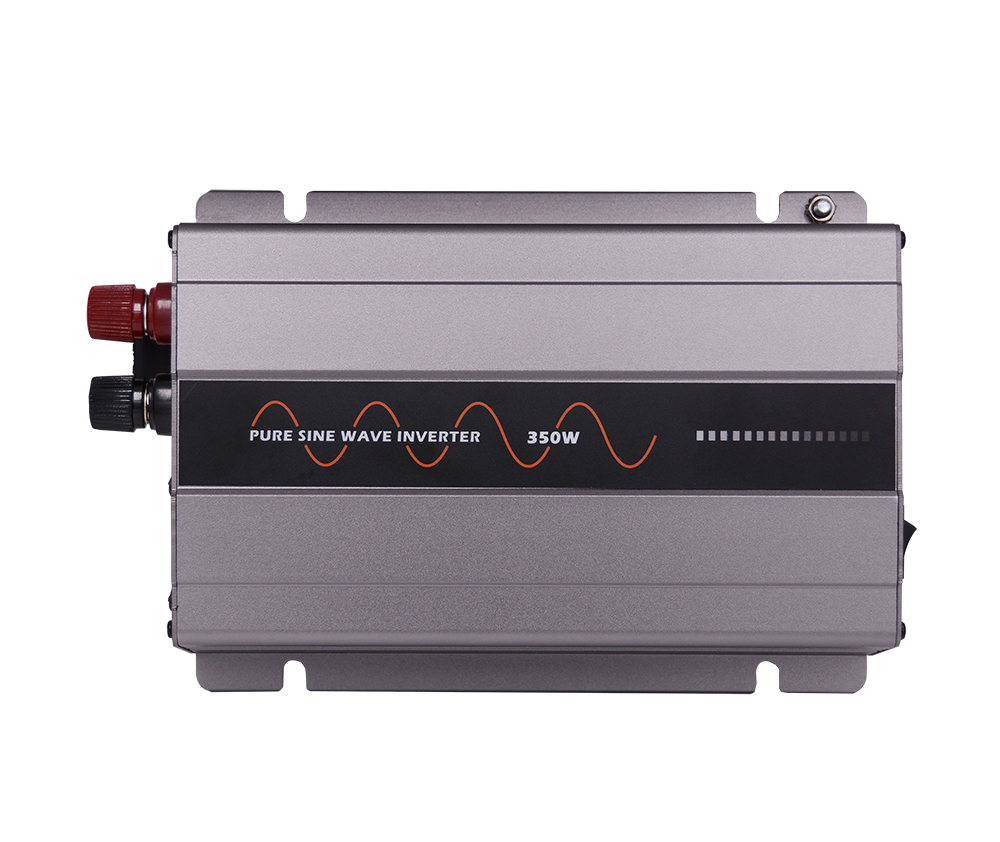

350W Pure Sine Wave Inverter

Solar Home

RVs/Boats

Street Lights

CCTV Camera

Industrial

INVERTER

Solar Inverter

EP Series

12V, 220/230Vac, 50/60Hz Frequency. Single-phase electricity solar inverter, DC current 25A. The product ls a pure sine wave inverter w. it features high rellability high efficlency, full protection functions, easy installatlon and operation,. The inverter can be applled in many flelds, such as household appllances, electric tools and industrlal devices etc,especlally for solar photovoltalc power system.

Product Manual

Send an Email

Add to Cart

Main Features


  • Adoption of advanced SPWM technology, pure sine wave ouput

  • Dynamic current loop control technology to ensure inverter reliable operalion

  • Wide DC input voltage range

  • Low output harmonic distortion(THDs2%)

  • LED indicators for input vollage range, normal output & failure state

  • Exlensive prolections: short-circuit, overload, under'over input voltage, over- temperature, and inverter's inner fault identification proteclions

  • The output vollage and frequency can be switched

  • Complele isolation-type inverter technology

  • Oplional energy SAV mode(saving mode)

  • Wide working temperalure range (industrial level)

  • Conlinuous operation at full power

Datasheets

ItemEP1000-21XEP1000-22XEP600-12xEP1500-12XEP2000-22XEP350-12X
Electrical Parameters
Input rated voltage24V12V24V12V
Input voltage range21~31Vdc10.8~16Vdc21~30.5Vdc10.8~16Vdc
No load current≤0.5A@24Vdc≤0.9A@12Vdc≤1.2A@12Vdc≤0.6A@24Vdc≤0.8A@12Vdc
Output voltage110/120Vac220/230Vac
Continuous power1000W600W1200W1600W280W
Continuous 15 minutes of output power///1500W2000W350W
Power 15min//1300W~1500W1700~2000W300W~350W
Power 60sec1100~1300W750~900W1500~1800W2000~2400W350~420W
Power 10sec/900~1200W/
Power 1.5sec1300W1200W~1350W1800W~2400W2400W~3200W420W~750W
Surge Power<2000W＜1350W＜2400W＜3200W＜750W
Output ModeSingle-phase electricity
Output wavePure sine wave
Frequency50/60Hz
Diatortion THDTHD≤2%(Resisitive load)
Efficiency at full load *192%92.5%92.0%93.30%88%
Max. efficiency *293%94.0%93.0%93.5%94.5%90.1%
SAV mode0.2A; The load is detected every 10sec, if the output
power is greaterthan 20W, it will output continuously		/0.82A； Detect the load every 10 seconds, and output continuously when the load is greater than 20W0.36A； Detect the load every 10 seconds, and output continuously when the load is greater than 20W/
DC current50A50A100A70A25A
Shutdown status＜1mA
Fuse100A*1200A*1125A*140A*1
Environment Parameters
Dimension366.4*189*73.2mm326.9*248*98.5mm240.9*150*59.9mm
Hole Sizeφ7mm
Net weight3.1Kg2.9Kg4.1Kg1.1Kg
Working temperature-20℃~+50℃
Storage temperature-35℃~+70℃
Humidity＜95%(N.C.)
Altitude＜5000m（Derating to operate accoding to IEC62040 at a height
exceeding 1000m）
Other Parameters
InsulationBetween AC output/DC input terminals and metal case: ≥550MΩBetween AC output terminals and metal case: ≥550MΩ
Dielectric strenthBetween AC output/DC input terminals and metal case:
Test voltage AC1500V, 1min		Between AC output terminals and metal case:
Test voltage AC1500V, 1min
ApplicationHousehold appliances, cars, solar system and so on
