MC2010 With RS485/Bluetooth
20A MPPT SOALR CHARGE CONTROLLER

Solar Home

RVs/Boats

CCTV Camera

Industrial

SOLAR CHARGE CONTROLLER

MPPT Solar Charge Controller

MC Series

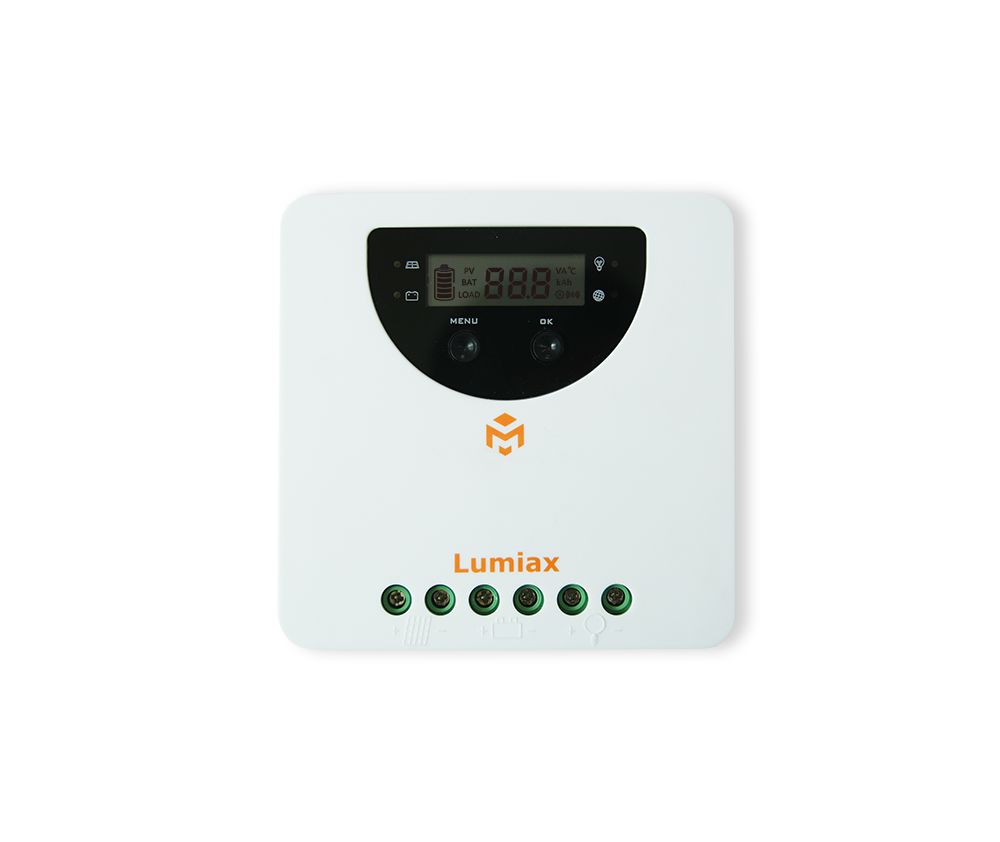

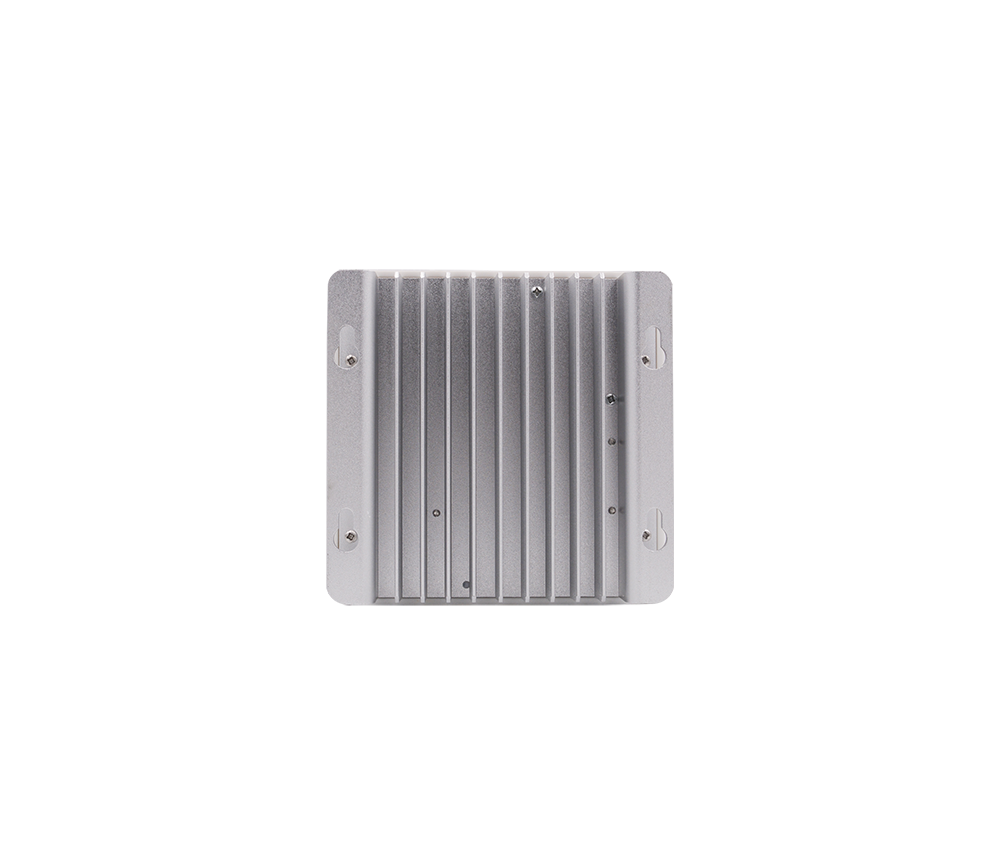

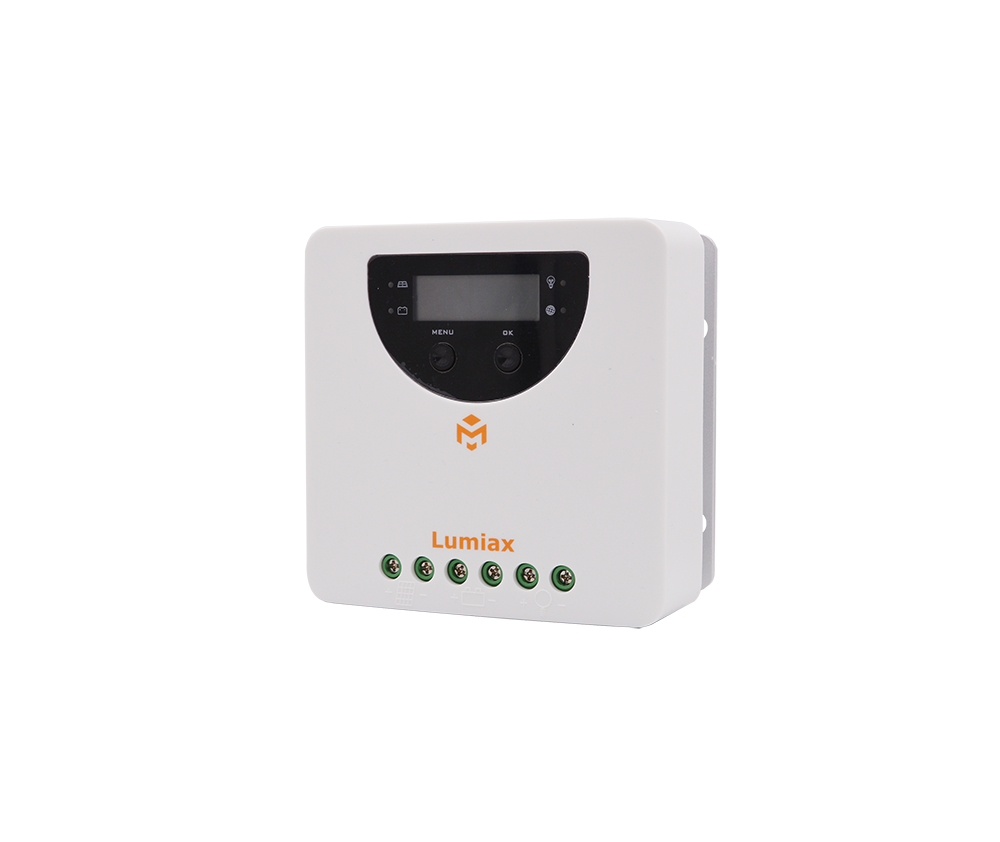

20A, 12V/24V auto, 260/520W max input power, 100V max solar voltage, LCD display, common negative, RS485, Bluetooth, IOT, IP32 Magic ube series solar controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system, the controller conversion efficiency up to 98%.

Product Manual

Send an Email

Add to Cart

Main Features


  • 12V/24/36/48V aulomalic recognition

  • Oplional APP version for Bluetooth communication

  • Realtime energy statistics function

  • A combination of multiple tracking algorithms enables tracking the maximum power point quickly and accurately

  • Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%

  • Full digital technology, high charge conversion efficiency up to 98%

  • LCD display design, read operating data and working condition easily

  • Flexible System baltery selection: Liquid, Gel, AGM and Lithium

  • Exlends battery life through accurale remote lemperature sensor

  • Controller is prolected against over-temperature due to built-in power reduction function

  • Four slages batlery charging process: MPPT, boost, equalization, float

  • Dual automatic protection to avoid exceeding the raled charging power and current

  • Multiple load control modes: Ahays on, Dusk to Dawn, Evening and Manual

  • loT wireless communication or Bluetooth communication functions optional

  • With the wireless communication function of the loT, the controller can be connected remotely through loTiGPRS

  • Monthly charging data can be calculated and displayed by grouping and graphs

  • Based RS-485 standard Modbus protocol with RJ11 interface to maximize the communication needs of different occasions.

  • Full automatic electronic protect funclion for increased charge controller availability


Datasheets


ItemMC2010MC3010MC4010MC6010
Max Charging Current20A30A40A60A
System Voltage12/24V automatic recognition
Battery TypeGel, AGM, Liquid, Lithium（default: Gel)
Max volt on Bat. terminal35V
Gel, AGM, LiquidMPPT Charging Voltage<14.5/29V@25℃(default: 14.5/29V)
Boost Voltage14~14.8/28~29.6V @25℃(default: 14.8/29.6V)(Liquid, AGM)
Equalization Voltage14.0~15.0V/28.0~30.0V @25℃（default：14.8/29.6V）（Liquid, AGM)
Float Voltage13~14.5/26~39V @25℃（default：13.7/27.4V）
Low Volt. Disconnect10.8~11.8V/21.6~23.6V(default: 11.2/22.4V)
Reconnect Voltage11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)
Overcharge Protect15.8/31.3V
Temp. Compensation-4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float)
LithiumCharging target voltage10.0~32.0V(Lithium, default: 14.4V)
Charging recovery voltage9.2~31.8V(Lithium, default: 14.0V)
Low voltage disconnect9.0~30.0V(Lithium, default: 10.6V)
Low voltage reconnect9.6~31.0V(Lithium, default: 12.0V)
Max volt on PV terminal *1100V(-20℃),90V(25℃）
Max input power260/520W390W/780W520/1040W750/1500W
Day/Night threshold3.0~10.0/6.0~20.0V(Default: 8/16V)
MPPT tracking range *2       （Battery Voltage +2.0V）~Voc*0.9
Output Current20A30A
Load modeAlways on, Street lamp, User-defind Mode(default: Always on)
Max tracking efficiency>99.9%
Max charge conversion98.0%
Dimensions136.6*136.6*67.1mm196.5*136.6*67.1mm262.4*186.5*97.3mm
Weight830g1.3Kg2.5Kg
Self consumption≤12mA≤14mA≤12mA
CommunicationRS485(RJ11 interface)
OptionalIoT,  BLE(Internal/External)
GroundingCommon Negative
Power terminals6AWG(16mm2)
Ambient temperature-20℃~+45℃
Storage temperature-25℃~+70℃
Ambient humidity≤95%RH，No condensation
Protection degreeIP32
