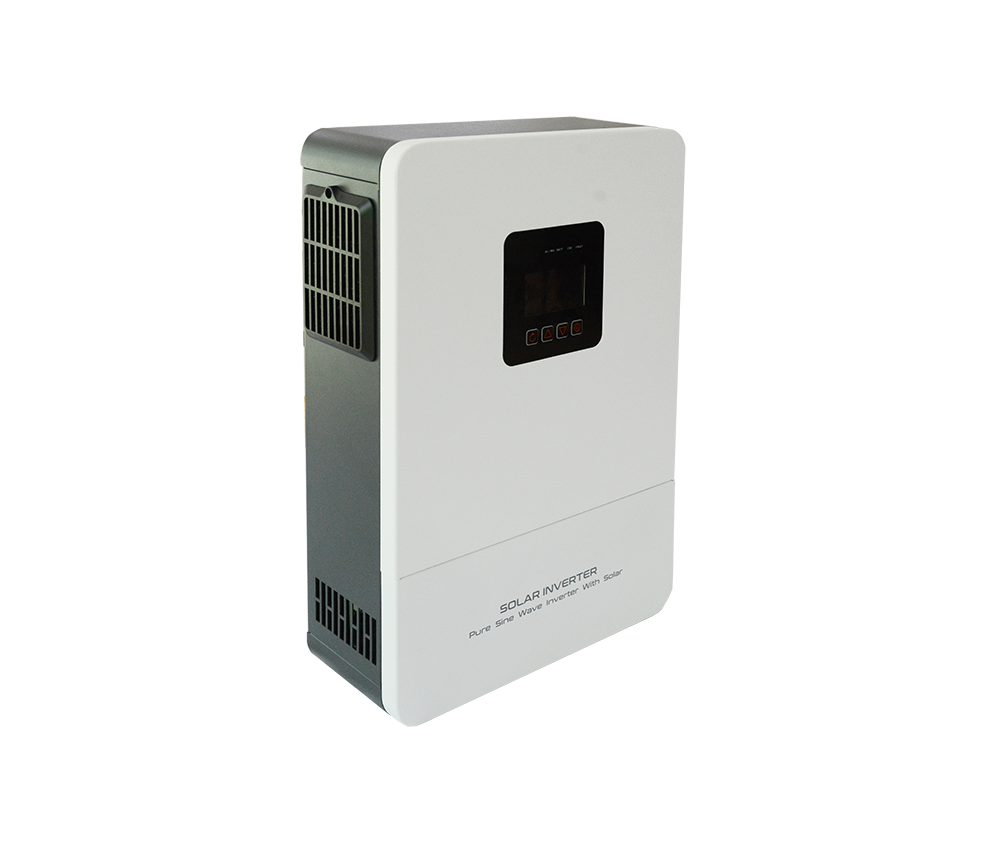

INVERTER
Inverter Charger
MKH系列

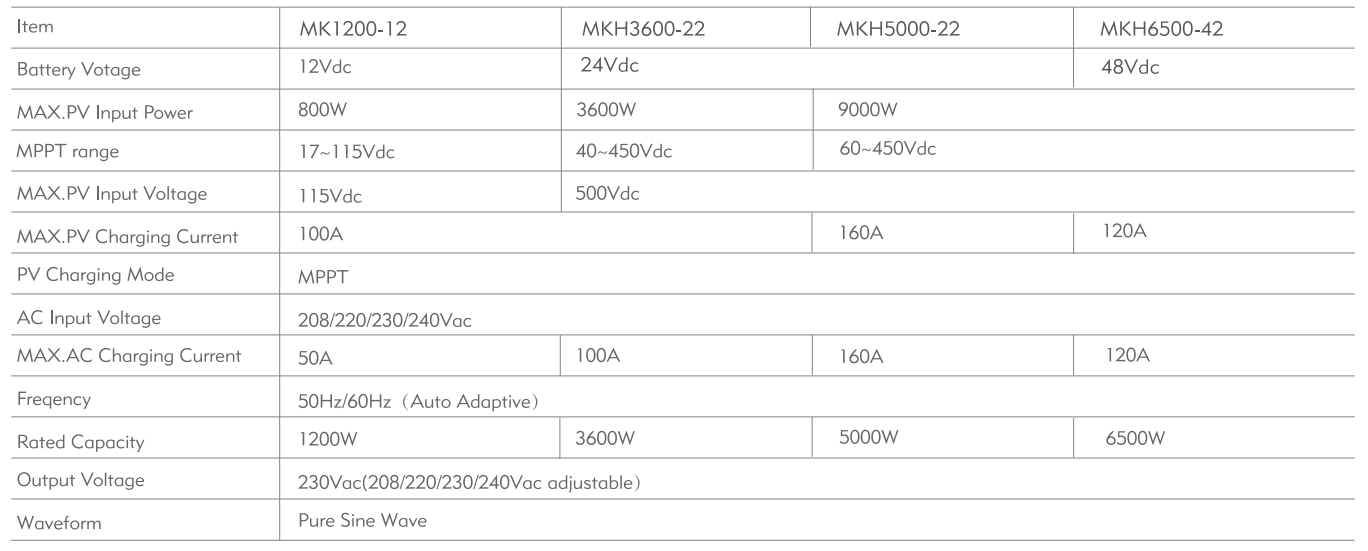

MPPT, 24V/220V, MAX.PV Input Voltage 500V.
MAX.PV Charging Current 100A, MAX.AC Charging Current 100A.
Pure Sine Wave, 50/60Hz Frequency.
Hybrid inverter/charger integrates solar & mains charging, with 4 charging modes.
Adopting DSP, optimized MPPT and SPWM tech, it outputs pure sine wave. Full protections, wide voltage range and LCD real-time display deliver high reliability for household and industrial AC loads.
Main Features
PV, utility mains, and the battery can power the load simultaneously.
After configuring the WiFi module, operating parameters can be monitored remotely(This feature is not applicable to MK1200-12).
Primary and secondary AC outputs, allowing differentiation based on the importance of the electrical loads (Only the MKH6500-42 has a second output, while other models only have one AC inverter output).
Equipped with CAN/RS485 for BMS communication, facilitating storage battery management(The MK1200-12 does not have BMS function).
High-frequency inverter: compact size,lightweight.
Pure sine wave AC output.With power saving mode function, reduce no-load loss.
Can operate without batteries(The MK1200-12 must be connected to a battery to operate)
MKH6500-42P inverter: 9 units for parallel operation.
