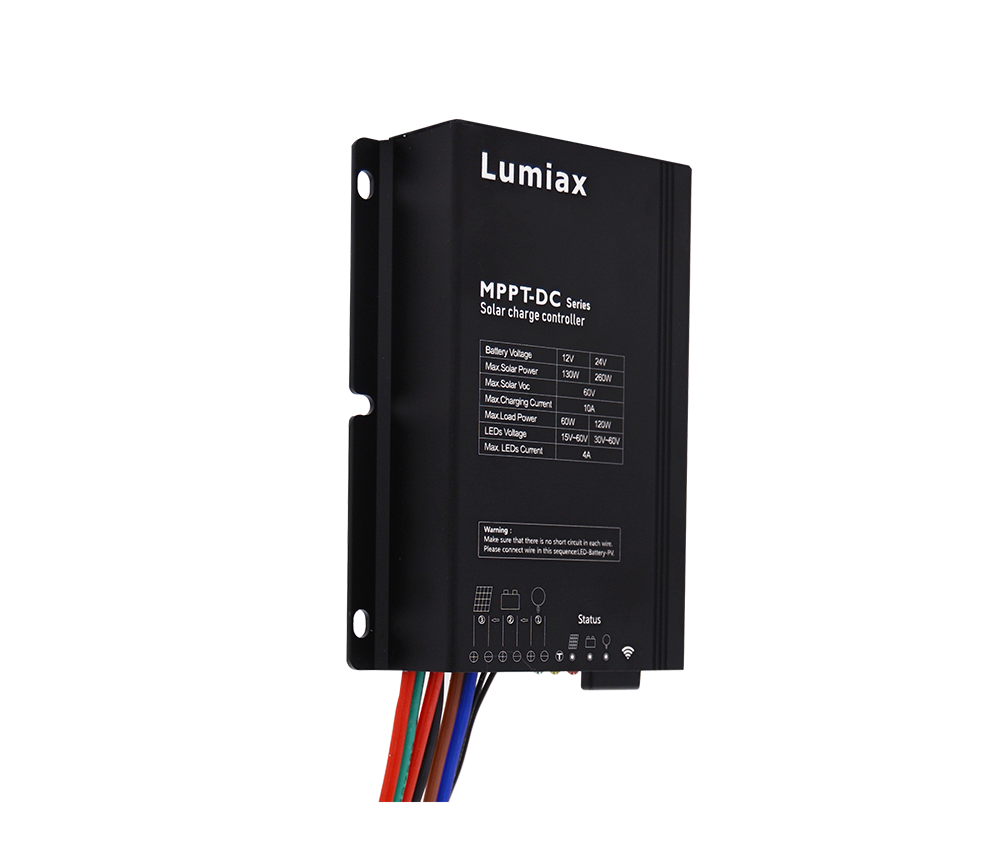

MPPT1060-DC80G/GV/GR
10A MPPT SOLAR CHARGE CONTROLLER

Street Lights

CCTV Camera

SOLAR CHARGE CONTROLLER

Solar Street Llight Charge Controller

MPPT-DC SERIES

MPPT-DC

MPPT, 10A, 12V, 130W max input power, 60V max solar voltage, Induction mode Infrared Human Sensing/Microwave Sensing，Communication mode Infrared/2.4G/IOT, IP67. MPPT-DC serles intelllgent MPPT solar controller is programmable and especlally for boost mode LED solar street llght system. lt includes constant current driver function. The charging efficlency ls about 20% higher than the traditional PWM controller, which can drop the cost of the whole system.

Product Manual

Send an Email

Add to Cart

Main Features


  • Innovative Maximum Power Point Tracking(MPpT) technology, tracking efficiency >99.9%

  • High charge conversion efficiency up to 97.7% .

  • Conslant current oulput, adjustable output current, resolution of 0.05A.

  • Five slage time and power adjusiment, power adjustable from 0 to 100%6.

  • When the battery level is low, automatic power reduction operation can be set.

  • Monitoring of the running stalus and parameters.

  • Dual automatic limit function for rated charging current and charging power.

  • Clear and easy to undersland charging and discharging, fault indication.

  • Suitable for Gel, Liquid, AGM and Lithium baltery.

  • External lemperature sensor with aulomatic lemperature compensation.

  • Automatic over-temperalure power reduclion function.

  • Four slage charging: MPPT, boost, equalization, float.

  • When BMS power off because of LvD, it can activate the syslem automatically.

  • 0'c Charging Proteclion(Lithium).

  • Waterproof lP67, Strong and durable aluminum case.

  • Perfect EMC & thermal design.

  • Full automatic electronic protect function.


Datasheets

ItemMPPT1060-DC80G/GV/GRMPPT1060-DC120G/GV/GR

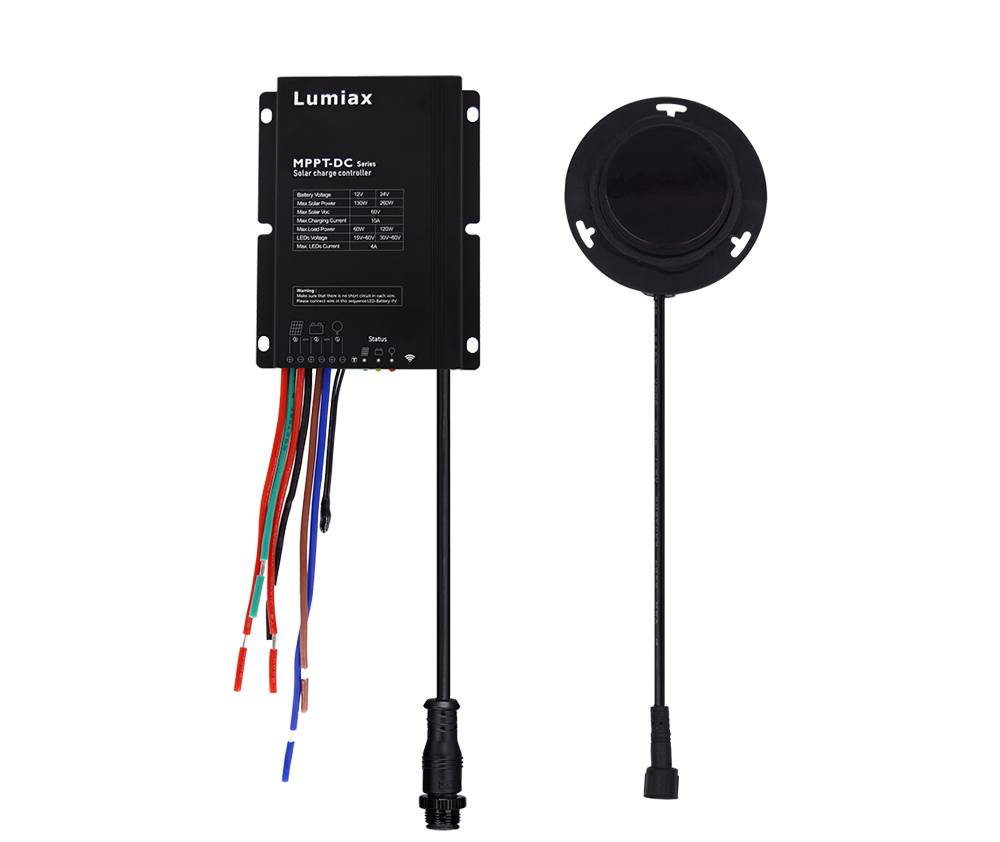

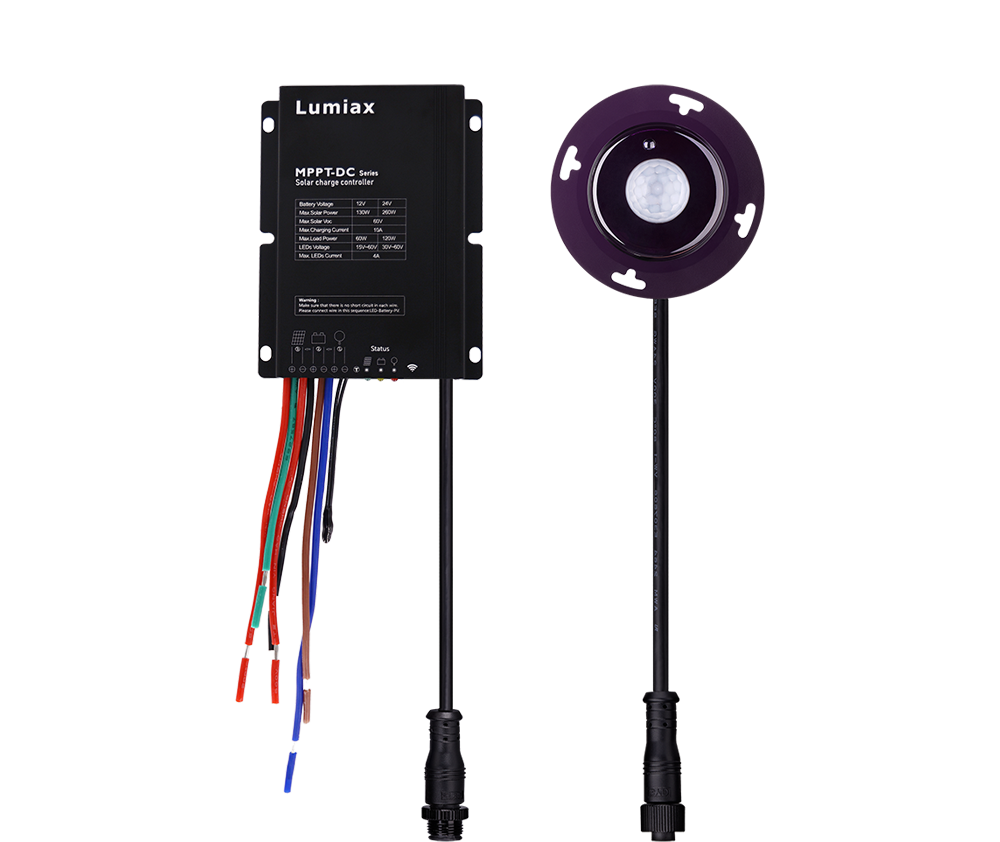

Controller typeG: 2.4G communication/GV: 2.4G communication+microwave induction/GR: 2.4G communication+infrared induction
System Voltage12V12V/24V automatical recognization
Max Charging Current10A
Max volt on Bat. Terminal25V35V
Battery TypeLiquid, Gel, AGM and Lithium (Programmable, default: Lithium)
Liquid, Gel, AGMMPPT Charging Voltage<14.5V@25℃ <14.5/29.0V@25℃
Boost Voltage14.5/29.0V @25℃
Equalization Voltage14.8/29.6V @25℃ (Liquid, AGM)
Float Voltage13.7/27.4V @25℃
Low Volt. Disconnect10.8~11.8V/21.6~23.6V（Programmable,default: 11.2V/22.4V）
Reconnect Voltage11.4~12.8V/22.8~25.6V（Programmable,default: 12.0V/24.0V）
Overcharge Protect15.5/31.0V
Temp. Compensation-4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float)
LithiumCharging voltage target10.0~17.0V (Programmable, default: 14.4V)10.0~32.0V (Programmable, default: 14.4V)
Charging voltage recovery9.2~16.8V (Programmable, default: 14.0V)9.2~31.8V (Programmable, default: 14.0V)
Low voltage disconnect9.0~15.0V (Programmable, default: 10.8V)9.0~30.0V (Programmable, default: 10.8V)
Low voltage reconnect9.6~16.0V (Programmable, default: 11.8V)9.6~31.0V (Programmable, default: 11.8V)
0℃ Charging protectionYes, Slow, No (Programmable)
Max volt on PV terminal   60V *1
Max input power130W130W/260W
Dusk/Dawn detect volt.3.0~20.0V (Programmable)
Day/Night delay time0~30min (Programmable)
MPPT tracking range   (Battery Voltage +1.0V)~Voc*0.9 *2
Output Power10~80W10~60W/20~120W
Output Voltage15~60V15~60V/35~60V
Current setting range0.1~4.0A（(Programmable)
Min current50mA (Dimming)
Current precision≤2%±30mA
Dimming0~100% (Programmable)
Voltage of start dimming11.8~12.5V (Gel,AGM and Liquid); 10.0~17.0V (Lithium)11.8~12.5V/23.6~25.0V (Gel,AGM and Liquid); 10.0~32.0V (Lithium)
Dimming percentage1~40%（Programmable）
Max tracking efficiency>99.9%
Max charge conversion97.5%
Max LED driver efficiency96.5%
Communication modeInfrared/2.4G/IOT
Induction mode Infrared Human Sensing/Microwave Sensing
Self consumption6~25mA
Dimensions113*88.5*24.3mm
Weight370g
Ambient temperature-35~+60℃
Ambient humidity0~100%RH
Protection degreeIP67


MPPT1060-DC+30100-DC260G_User Manual-HEI
