SOLAR CHARGE CONTROLLER

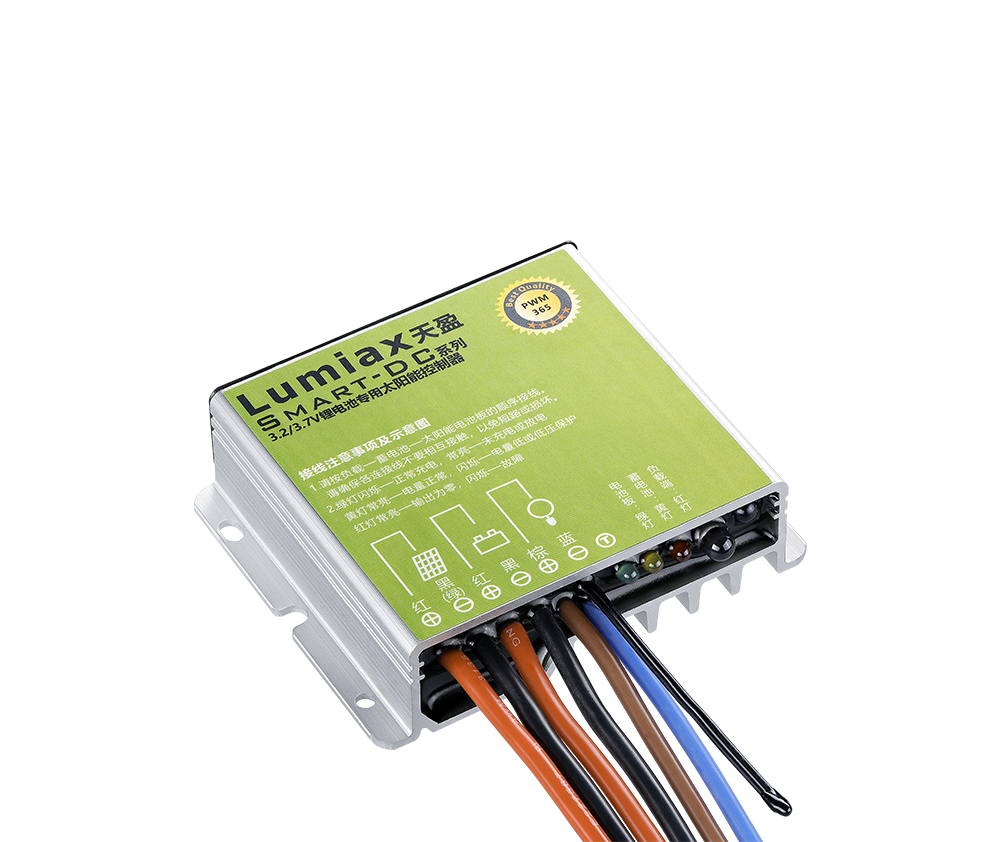

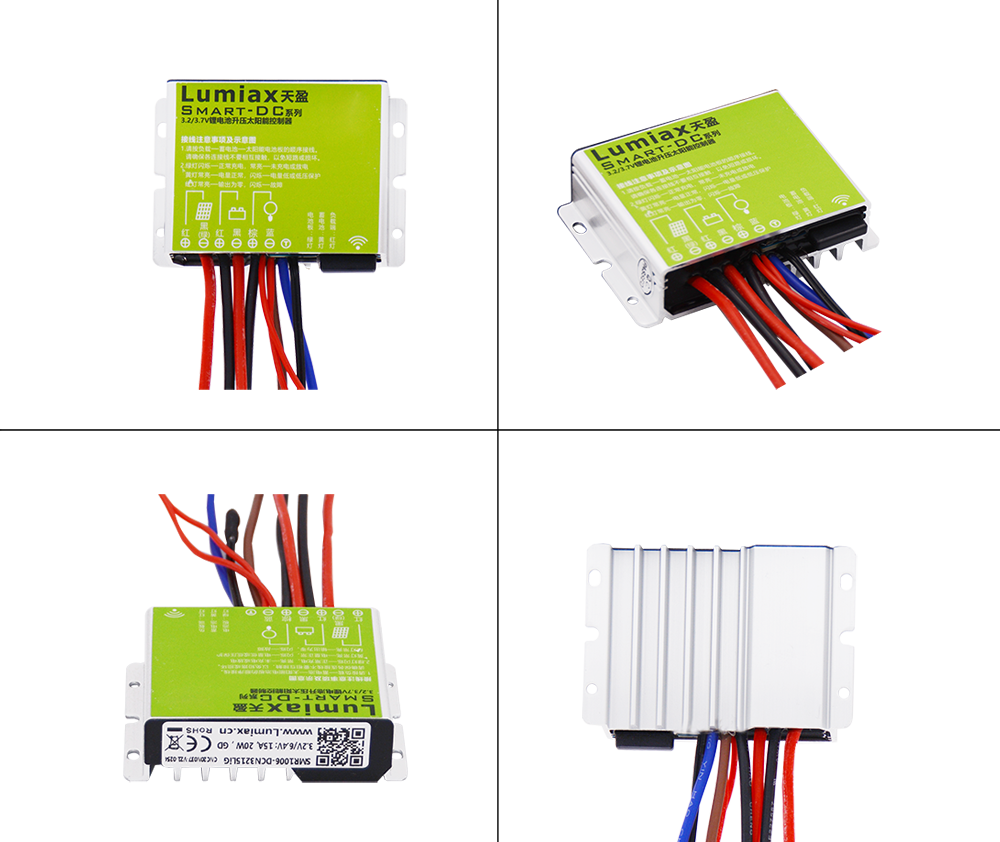

Solar Street Llight Charge Controller
Smart-3.2V Series
PWM, 15A, 3.2V/6.4V,
2.4G wireless remote control/Infrared sensing/Microwave induction;
Max. panel voltage 7V(Single cell),15V(Two lithium batteries in series).
Intelligent solar controller, is programmable and especially for boost mode LED solar street light system. lt includes constant current driver function, which can make the cost of the whole system much lower.
Main Features
Can output constant current (output current can be set)
lf battery voltage is low, it can be set to dimming
Dimming start voltage and percentage can be set
Auto sleeping during transportation
Suitable for single or two series lithium batteries
Low temperature charging protection
When BMS power off because of LVD, it can activate the system automatically
Charging target voltage and recovery voltage can be set
Day/Night threshold can adjust automatically
Remote Unit to configure, with LCD display(SU/SG32)
5 stages time and dimming can be adjusted

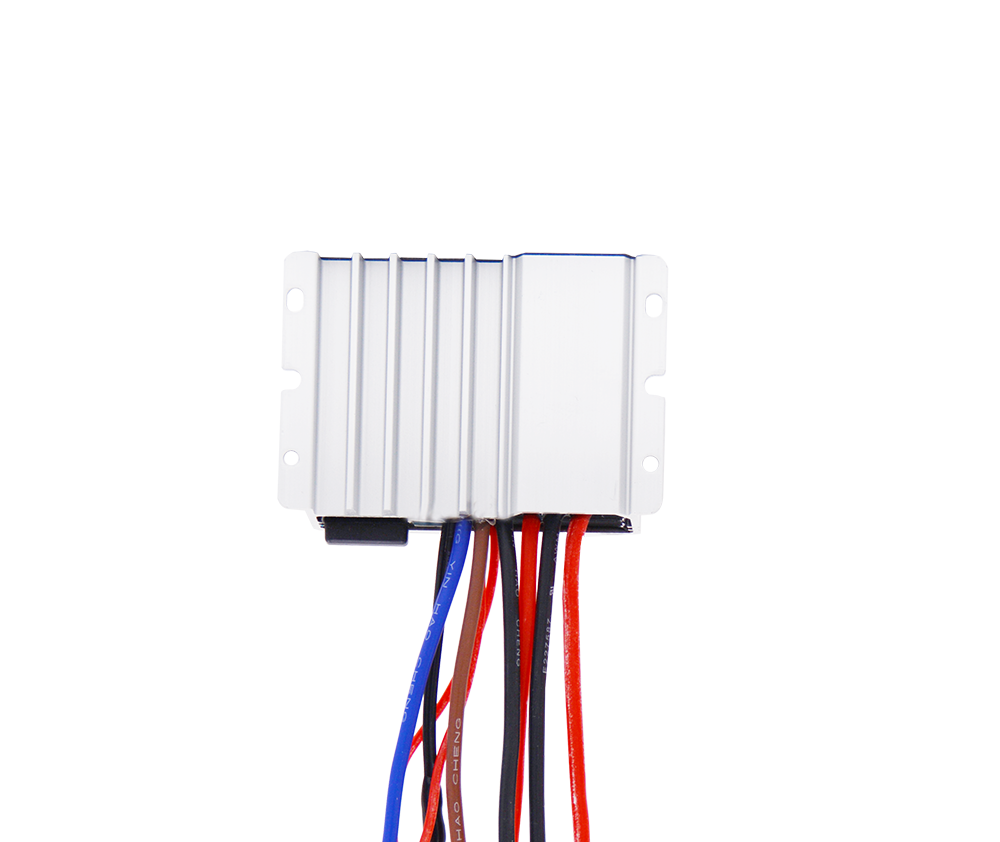

lp67, Strong and durable aluminum case
Full automatic electronic protect function
Datasheets
| Item | Standard product | SMR1006-DCN3215Li | SMR1006-DCN3225Li | SMR1006-DCN3225LiGP |
| Suffix description | G: 2.4G wireless remote control (default infrared remote control without suffix); R: Infrared sensing; V: Microwave induction; GV: 2.4G remote control+microwave induction; GR: 2.4G remote control+infrared sensing; | GP: 2.4G wireless remote control (default infrared remote control without suffix); RP: Infrared sensing; VP: Microwave induction; | ||
| Max Charging Current | 15A | 25A | ||
| Charging voltage target | 3.0~9.0V (Programmable) | |||
| Charging voltage recovery | 2.9~8.9V (Programmable) | |||
| Low voltage disconnect | 2.4~7.2V (Programmable) | |||
| Low voltage reconnect | 2.6~7.4V (Programmable) | |||
| Battery Type | Lithium | |||
| 0℃ Charging protection | Yes、No、Slow (Programmable) | |||
| Max volt on Bat. Terminal | 10V | |||
| Max volt on PV terminal | 7V(Single cell),15V(Two lithium batteries in series) | |||
| Dusk/Dawn detect volt. | 1.0~3.0V (Programmable) | |||
| Day/Night delay time | 0~30min (Programmable) | |||
| Output Current | 0.1~2.0A (Programmable) | 0.1~3.0A (Programmable) | ||
| Output Voltage | (Battery voltage+ 2V)~ 34V | |||
| Output power | 1~20W | 1~40W | ||
| Min current | 50mA(Dimming) | |||
| Current precision | ±2% | |||
| Max LED driver efficiency | 92% | |||
| Dimming | 0~100% (Programmable) | |||
| Auto dimming | Yes、NO (Programmable) | |||
| Dim V | 2.8~Charging voltage target (Programmable) | |||
| Dim % | 5~40% (Programmable) | |||
| Communication | Infared/2.4G | |||
| Self consumption | 6~25mA | |||
| Dimensions(mm) | 52*76.4*20.7mm | 61*76.4*20.7mm | 81*85.8*23.1mm | |
| Weight | 140g | 150g | 280g | |
| Wire size | 2.5mm² | 4mm² | ||
| Ambient temperature | -35~+60℃ | |||
| Ambient humidity | 0~100%RH | |||
| Protection degree | IP67 | |||
| Max Altitude | 4000m | |||
