SOLAR CHARGE CONTROLLER

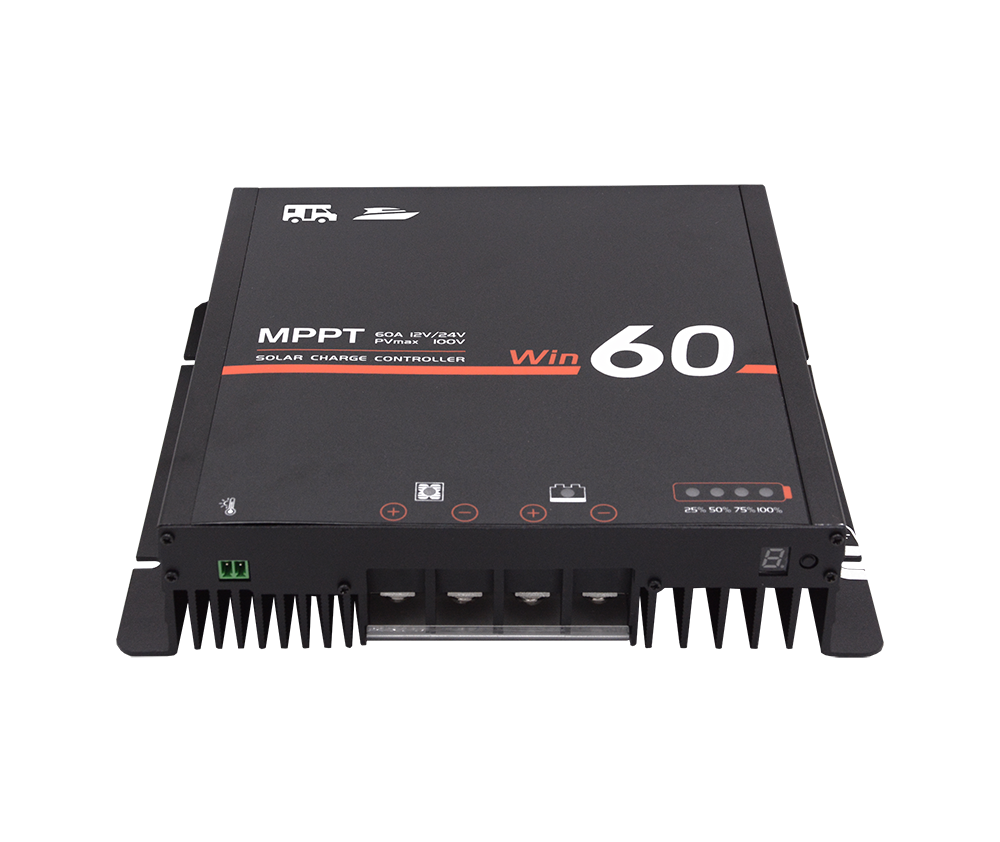

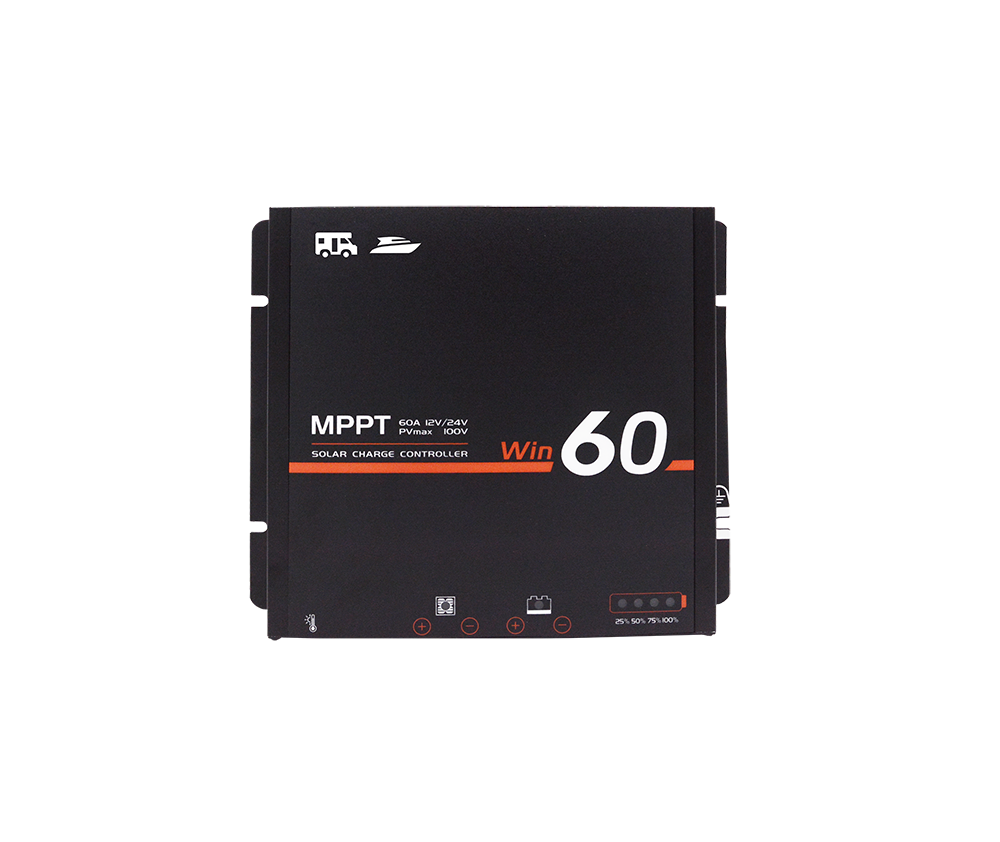

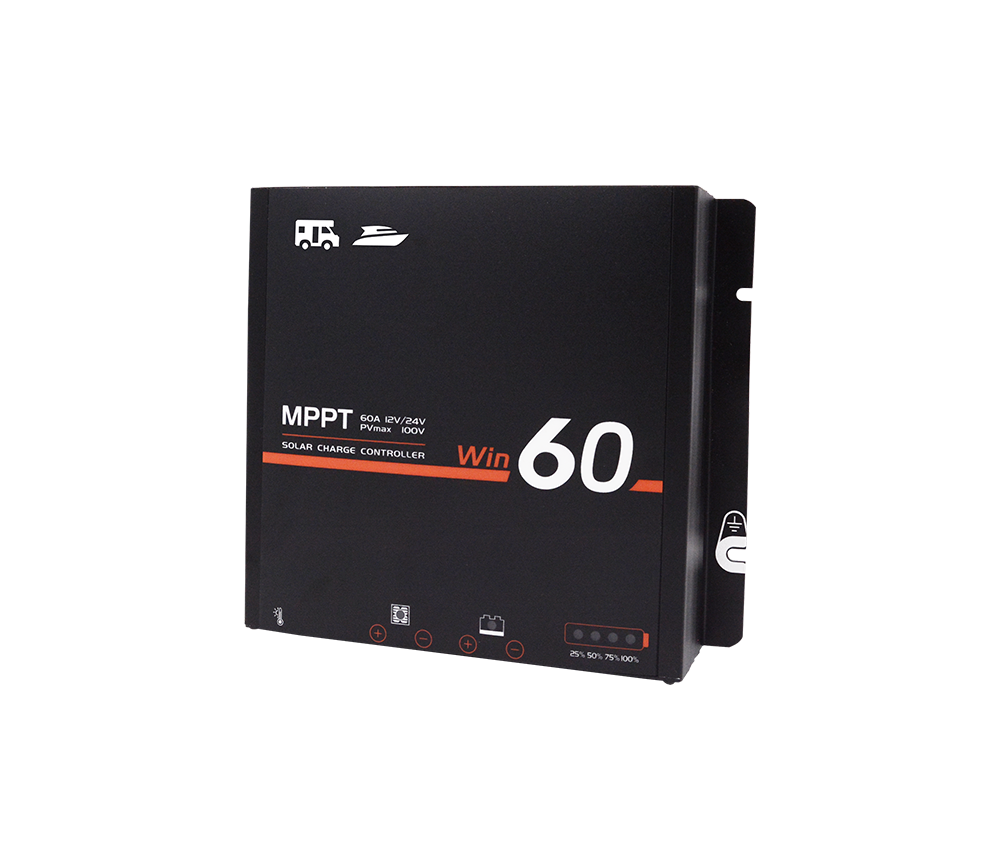

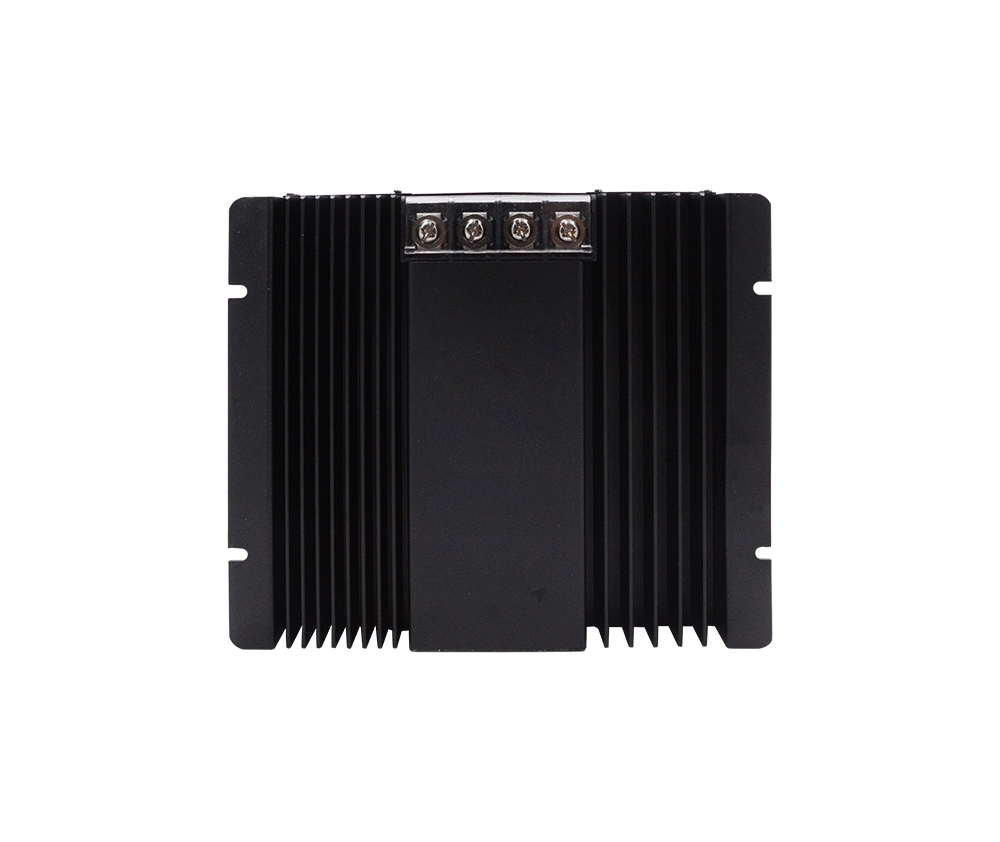

MPPT Solar Charge Controller
WIN Series
MPPT, 60A, 12V/24V auto
Bluetooth，Designed for RV & Yacht
Max input power 800W/1600W，100V max solar voltage, IP54
Main Features
Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
Full digital technology, high charge conversion efficiency up to 98%
LED indicator for easy to read charging state and battery information
12/24V automatic recognition
Liquid, Gel, AGM and Lithium battery for selection
The separate ports for remote temperature sensor, make battery temperature compensation more accurate
Four stages charge way: MPPT, boost, equalization, float
Automatic over-temperature power reduction function
Dual automatic restriction function when exceeding rated charging power and charging current
IOS and Android APp version for Bluetooth communication(selectable)
Common negative design
LED segments displays,make battery selection easy
Perfect EMC & thermal design
Full automatic electronic protect function
Datasheets
| Item | Win60100-K |
| Battery type | Gel, AGM, Liquid, Lithium (default: Gel) |
| System voltage | 12/24V automatical recognization |
| Max charging current | 60A |
| MPPT charging voltage | ＜14.5/29.0V@25℃ |
| Boost voltage | 14.0~14.8V/28.0~29.6V (default:14.5/29.0V@25℃) |
| Equalization voltage | 14.0~15.0V/28.0~30.0V (default:14.8/29.6V@25℃)(Liquid,AGM) |
| Float voltage | 13.0~14.5V/26.0~29.0V (default:13.7/27.4V@25℃) |
| Low voltage disconnect | 10.8~11.8V/21.6~23.6V (default: 11.2/22.4V) |
| Low voltage reconnect | 11.4~12.8V/22.8~25.6V (default: 12.0/24.0V) |
| Battery high voltage protection voltage | 15.8/31.3V(Liquid,GEL,AGM) |
| Max volt on bat. terminal | 35V |
| Temperature compensation | -4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float) |
| Charging target voltage | 10.0~32.0V (Lithium, default: 14.4/28.8V) |
| Charging recovery voltage | 9.2~31.8V (Lithium, default: 14.0/28.0V) |
| Low voltage disconnect | 9.0~30.0V (Lithium, default: 11.0/22.0V) |
| Low voltage reconnect | 9.6~31.0V (Lithium, default: 12.0/24.0V) |
| Max voltage on PV *1 | 100V |
| Max input power | 800W/1600W |
| MPPT tracking range *2 | （Battery Voltage + 1.0V）~Voc*0.9 |
| Max conversion efficiency | 97% |
| Dimensions | 190*230*50.2mm |
| Net weight | 2863g |
| Communication | BLE(Selectable) |
| Grounding | Laser engraving and silk screen printing |
| Power terminals | 6AWG (16mm²) |
| Ambient temperature | -20~+55℃ |
| Storage temperature | -40~+80℃ |
| Ambient humidity | 0~100%RH |
| Protection degree | IP54 |
| Max Altitude | 4000m |
