Description

Technical Parameters

· LCD display design, read operating data and working condition easily
· Real-time energy statistics function
· 12/24/36/48V automatic recognition
· Flexible System battery selection: Liquid, Gel, AGM and Lithium
· Extends battery life through accurate remote temperature sensor
· Controller is protected against over-temperature due to built-in power reduction function
· Four stages battery charging process: fast, boost, equalization, float
· Multiple load control modes: Always on, Street lamp, User-defind Mode
· Two USB interfaces (Max20/30/40-EU)
· IoT wireless communication or Bluetooth communication functions optional (Max60(48)-E)
· Based RS-485 standard Modbus protocol with RJ11 interface to maximize the communication needs of
different occasions (Max60(48)-E)
· Perfect EMC & thermal design
· Full automatic electronic protect function

Parameters:

	Item		Max20-EU	Max30-EU	Max40-EU
Battery Parameters	Max Charging Current		20A	30A	40A
	System Voltage		12/24V automatic recognition
	Max volt on Bat. terminal		35V
	Battery Type		Gel, AGM, Liquid, Lithium(default: Gel)
	Gel, AGM, Liquid	Fast Charging Voltage	before boost or equalization charging stage
		Boost Voltage	14.5/29.0V @25℃
		Equalization Voltage	14.8/29.6V @25℃（Liquid, AGM）
		Float Voltage	13.7/27.4V @25℃
		Low Volt. Disconnect	10.8~11.8V/21.6~23.6V(default: 11.2/22.4V)
		Overcharge Protect	15.8/31.3V
		Temp. Compensation	-4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float)
	Lithium	Charging target voltage	10.0~32.0V(Lithium, default: 14.4V)
		Low voltage disconnect	9.0~30.0V(Lithium, default: 10.6V)
Panel Parameters	Max volt on PV terminal *1		25V/50V
	Dusk/Dawn detect volt.		5.0/10.0V
Load Parameters	Output Current		20A	30A	40A
	Load mode		Always on(Default) , Street lamp, User-defind Mode
System Parameters	Dimensions		1899653mm
	Weight		420g
	Self consumption		8mA/12mA
	Grounding		Common Positive
	Power terminals		8AWG(10mm²)
	Ambient temperature		-20~+50℃
	Storage temperature		-25~+80℃
	Ambient humidity		0~100%RH
	Protection degree		IP32
	Max Altitude		4000m

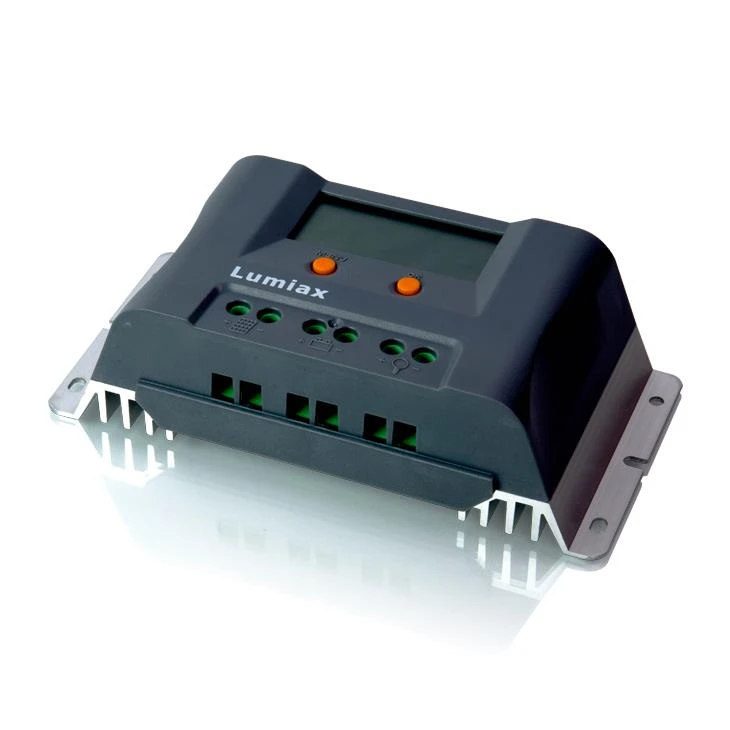

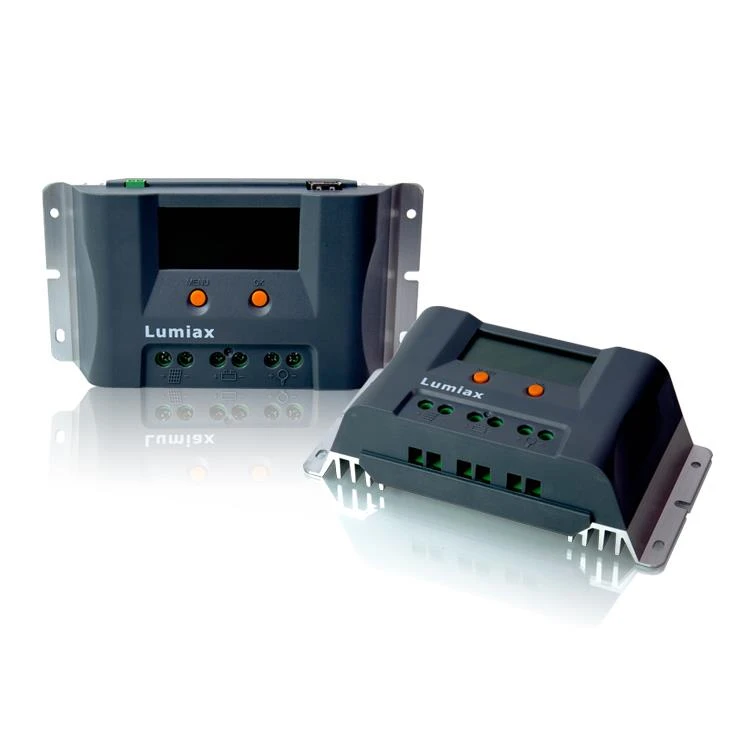

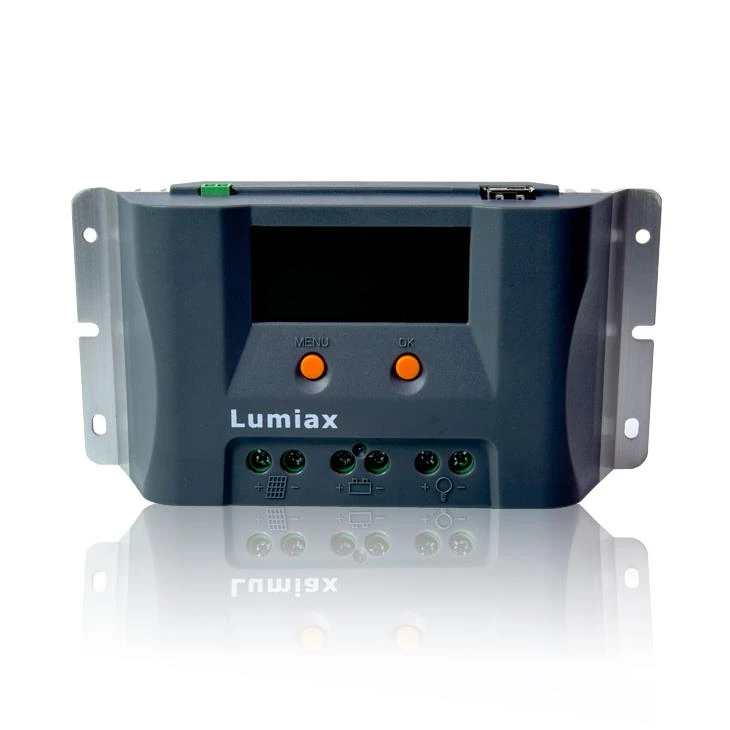

Max30-EU is a sort of 30 a solar regulator.

It means 12V/24V automatic recognition as well as 30A charge and discharge current.

Evaluation about Lumiax 30A PWM solar charge controller.

This article will show PCBA of Lumiax Max30-EU PWM solar charge controller, and to judge it from professional position.

First, this is the PCBA of the controller. The most important is that FETs are securely fixed to heatsink, which can insure the heat from FETS can be well dispatched. Also Busbars connect high current paths, which will keep PCB well. With 63V and 50V capacitors from Samyoung, good brand and high voltage for 12/24V system. High capacity of capacitors will insure the solar charge controller long life span, which is very important for solar charge controllers, also for other electrical appliances.

Second, we do some protections testing, including high temperature, overload PV input, overload output, high and low battery voltage, high and low PV voltage, load short circuit, reverse polarity connection at PV input and batter output; the controller can protect itself very successfully. It is very wonderful.

Third, do some functional testing. Like PWM frequency, it is 30HZ rampup and rampdown, which is good range. Also do some testing about voltage and current measurement, the result is very reasonable, at very good range.

The most important testing is that doing the temperature testing, which can know whether this controller can work well at 100% standard condition. We charge at 30A and discharge at 30A, the temperature is at 50 ℃ stably. This is very excellent! We have tested other brands, some temperature rising is very high, like 55℃, some will play tricks, began to decrease the charging current to decrease the heating production. Also you can see that the heating sink board is very good, the MOSFET are fixed very tightly on the board, which is good design.

From the testing, we have to say that Max30-EU is one good product, with good design, good components inside, good quality.
