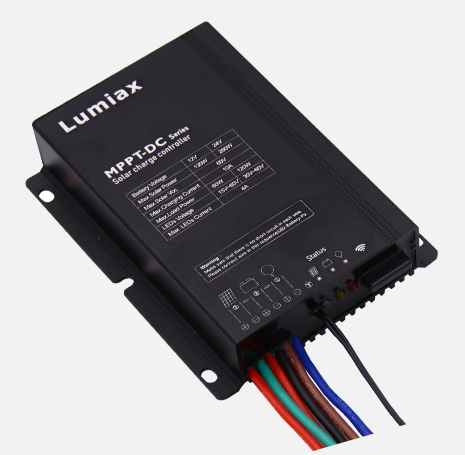

MPPT-DC series intelligent MPPT solar controller is programmable and especially for boost mode LED solar street light system. It includes constant current driver function. The charging efficiency is about 20% higher than the traditional PWM controller, which can drop the cost of the whole system.

Innovative Maximum Power Point Tracking(MPPT) technology, tracking efficiency >99.9%.
High charge conversion efficiency up to 97.7%.
Constant current output, adjustable output current, resolution of 0.05A.
Five stage time and power adjustment, power adjustable from 0 to 100%.
When the battery level is low, automatic power reduction operation can be set.
Monitoring of the running status and parameters.
Dual automatic limit function for rated charging current and charging power.
Clear and easy to understand charging and discharging, fault indication.
Suitable for Gel, Liquid, AGM and Lithium battery.
External temperature sensor with automatic temperature compensation.
Automatic over-temperature power reduction function.
Four stage charging: MPPT, boost, equalization, float.
When BMS power off because of LVD, it can activate the system automatically.
0℃ Charging Protection(Lithium).
Waterproof IP67, Strong and durable aluminum case.
Perfect EMC & thermal design.
Full automatic electronic protect function.

Item

MPPT1060-DC120HG

Battery Parameters

System Voltage

12V/24V automatical recognization

Max Charging Current

10A

Max volt on Bat. Terminal

35V

Battery Type

Liquid, Gel, AGM and Lithium (Programmable, default: Lithium)

Liquid, Gel, AGM

MPPT Charging Voltage

<14.5/29.0V@25℃

Boost Voltage

14.5/29.0V @25℃

Equalization Voltage

14.8/29.6V @25℃ (Liquid, AGM)

Float Voltage

13.7/27.4V @25℃

Low Volt. Disconnect

10.8~11.8V/21.6~23.6V(Programmable,default: 11.2V/22.4V)

Reconnect Voltage

11.4~12.8V/22.8~25.6V(Programmable,default: 12.0V/24.0V)

Overcharge Protect

15.5/31.0V

Temp. Compensation

-4.17mV/K per cell (Boost, Equalization), -3.33mV/K per cell (Float)

Lithium

Charging voltage target

10.0~32.0V (Programmable, default: 14.4V)

Charging voltage recovery

9.2~31.8V (Programmable, default: 14.0V)

Low voltage disconnect

9.0~30.0V (Programmable, default: 10.8V)

Low voltage reconnect

9.6~31.0V (Programmable, default: 11.8V)

0℃ Charging protection

Yes, Slow, No (Programmable)

Panel Parameters

Max volt on PV terminal

60V *1

Max input power

130W/260W

Dusk/Dawn detect volt.

3.0~20.0V (Programmable)

Day/Night delay time

0~30min (Programmable)

MPPT tracking range

(Battery Voltage +1.0V)~Voc*0.9 *2

Mains

Mains mode

External DC power supply

Power supply voltage

10V~14V(12V system); 20V~28V(24V system)

Load Parameters

Output Power

10~60W/20~120W

Output Voltage

15~60V/35~60V

Current setting range

0.1~4.0A((Programmable)

Min current

100mA (Dimming)

Current precision

≤2%±30mA

Dimming

0~100% (Programmable)

Voltage of start dimming

11.8~12.5V/23.6~25.0V (Gel,AGM and Liquid); 10.0~32.0V (Lithium)

Dimming percentage

1~40%(Programmable)

System Parameters

Max tracking efficiency

>99.9%

Max charge conversion

97.5%

Max LED driver efficiency

96.5%

Communication mode

2.4G

Self consumption

6~23mA

Dimensions

113*115.3*29.8mm

Weight

520g

Ambient temperature

-35~+60℃

Ambient humidity

0~100%RH

Protection degree

IP67
