Thank you for choosing our data memory. Please read the instructions carefully
before using the product.
Please keep this product manual for future reference.
When receiving the product, please check whether the goods are damaged during
transportation. If any problem is found, please contact our company immediately.
Please read all instructions and precautions in the manual before installation to
ensure that the product can work properly.
Do not place this product in the environment of rain, exposure, dust, vibration,
corrosion and strong electromagnetic interference.
Do not open the shell of this product for maintenance.
|
Item |
Dlog-1 |
|
Applicable products |

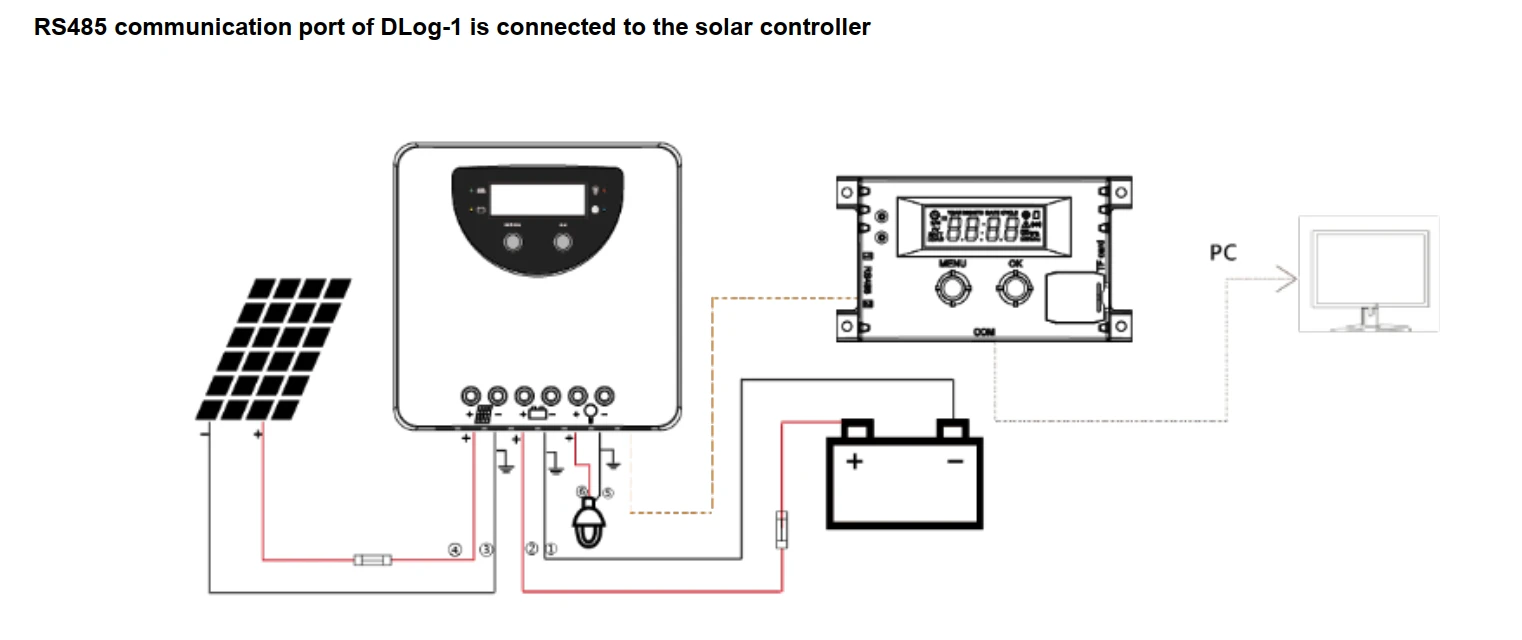

Lumiax solar controller and inverterswith RS485 port |
|
Input |
5VDC（USB) (8 ~ 65V communication interface power supply) |
|
LCD backlight |
yes |
|
Battery Model |
Cr1220,not included |
|
Working environment |
-20℃～+65℃ |
|
Storage environment |
-20℃～+80℃ |
|
Dimensions |
112.5*63*23mm |
|
Net weight |
0.22kg |
