Functions

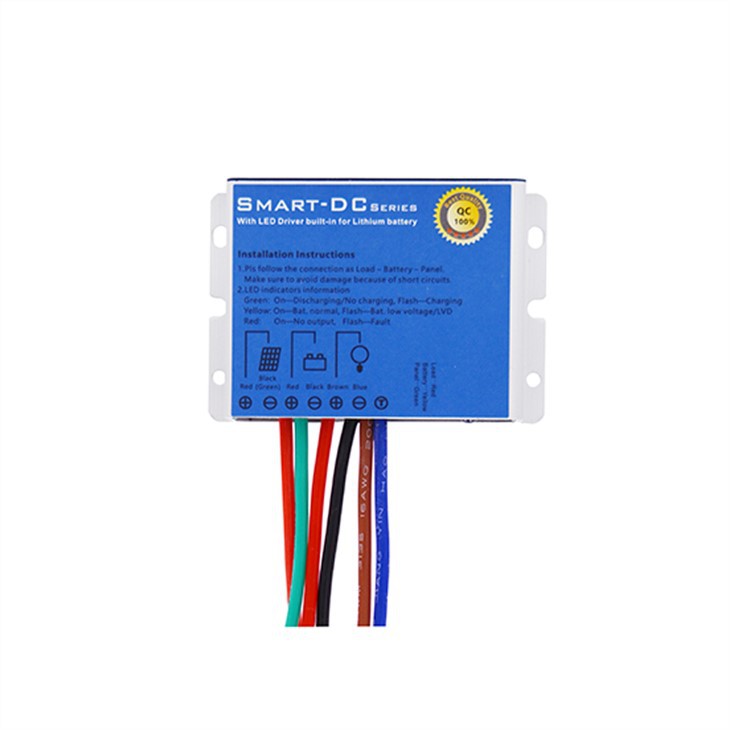

Smart-DC series intelligent solar controller, is programmable and especially
for boost mode LED solar street light system.
It comes with some outstanding features, such as:
Can output constant current
Adjustable 5-stage timer for load ouput
Human infrared induction
Monitoring of the running status and parameters
Suitable for Gel, Liquid, AGM and Lithium battery
12V/24V system voltage automatic recognition
Automatic temperature compensation(Liquid/GEL)
Four stages charge: fast, boost, equal, float(Liquid/GEL)
If battery voltage is low, it can be set to dimming automatically
Dimming start voltage and percentage can be set
Auto sleeping during transportation(Lithium)
When BMS power off because of LVD, it can activate the system automatically (Lithium)
Charging target and recovery voltage can be set(Lithium)
0℃ Charging Protection(Lithium)
Day/Night threshold can adjust automatically
Configurable with an LCD remote programmer
Waterproof IP67, Strong and durable aluminum case
Full automatic electronic protect function
Model | SMR1006-DCN5MLiR | SMR1006-DCN5MLiE | SMR1006-DCN5MLiEG | |
Battery Parameters | Max Charging Current | 10A | 8A | |
System Voltage | 12V | |||
Max. battery voltage | 20V | |||
Battery type | Lithium | |||
Charging voltage target | 10.0~17.0V(Programmable) | |||
Charging voltage recovery | 8.5~16.8V(Programmable) | |||
Low voltage disconnect | 8.0~15.0V(Programmable) | |||
Low voltage reconnect | 8.6~16.0V(Programmable) | |||
0℃ Charging protection | Yes, No, Slow(Programmable) | |||
Panel Parameters | Max. panel voltage | 25V | ||
Day/Night threshold | 3~8V(Programmable) | |||
Day/Night delay time | 0~30min（Programmable） | |||
Load Parameters | Output power | 1~30W | ||
Output current | 0.15~2.0A(Programmable) | 0.15~1.3A(Programmable) | ||
Min. Load current | 50mA(Dimming） | |||
Output voltage DC | (Vbat + 2V)~55V | (Vbat + 2V)~33V | ||
Current precision | ±2% | |||
Auto dimming | Yes,No,365 | Yes,No(Programmable) | ||
Dimming | 0~100%(Programmable) | |||
Voltage of start dimming | 9.0~Charging voltage target (Programmable) | |||
Dimming percentage | 1~20%（Programmable） | -- | ||
Induction delay off time | 10~150s(Programmable) | -- | ||
Dimming when no people | 0~100%(Programmable) | |||
Work Mode | 5 Stages,D2D, T0T(Programmable) | |||
Max. LED driver efficiency | 95% | |||
System Parameters | Remote control mode | Infrared | Wireless remote control, 0~30 meters can be set | |
Dimensions | 68*68*39mm | 76.4*52*20.7mm | ||
Weight | 150g | 125g | ||
Wire size | 2.5mm2 | |||
Self consumption | 6~14mA | 6~11mA | 6~35mA | |
Ambient temperature | -35℃~+60 ℃ | |||
Degree of protection | IP67 | |||
Max. Altitude | 4000m | |||
