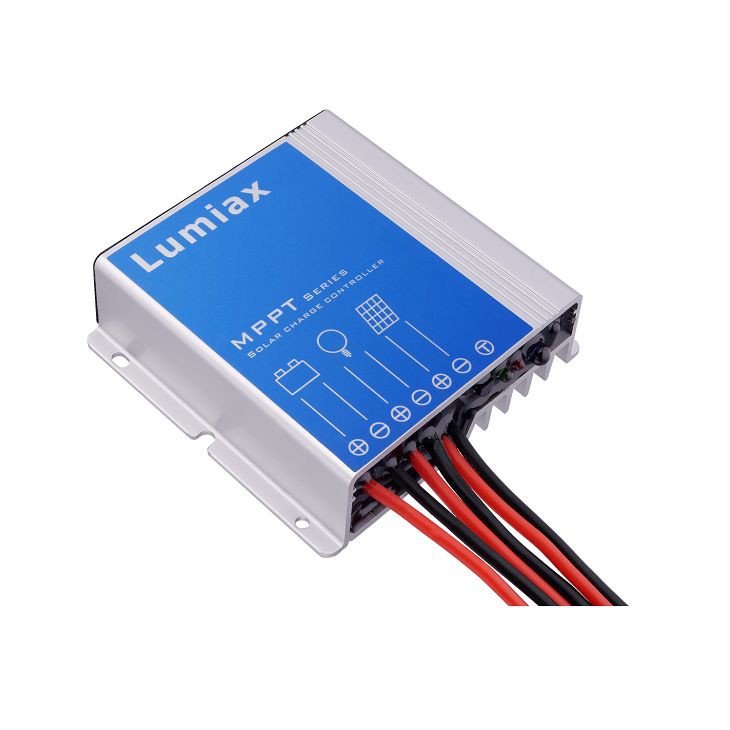

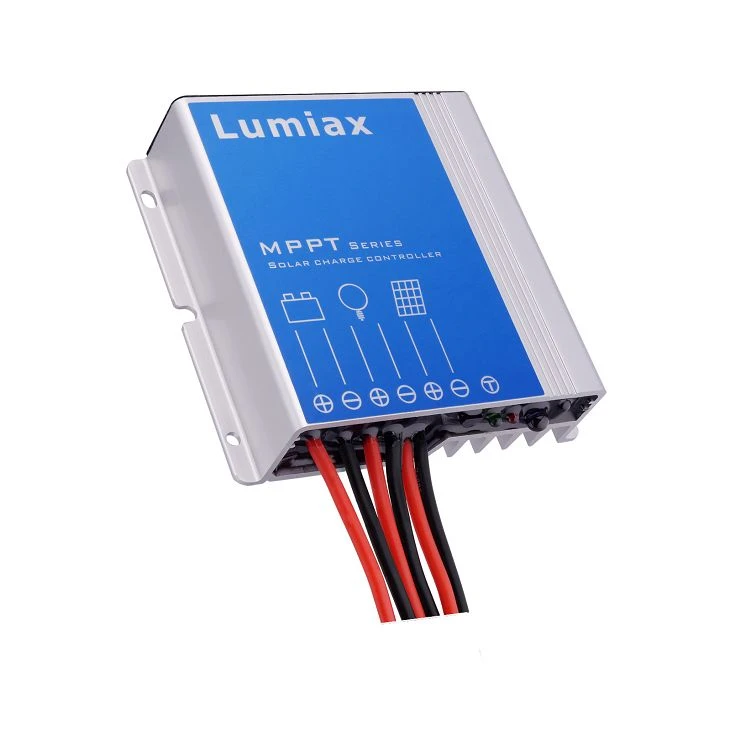

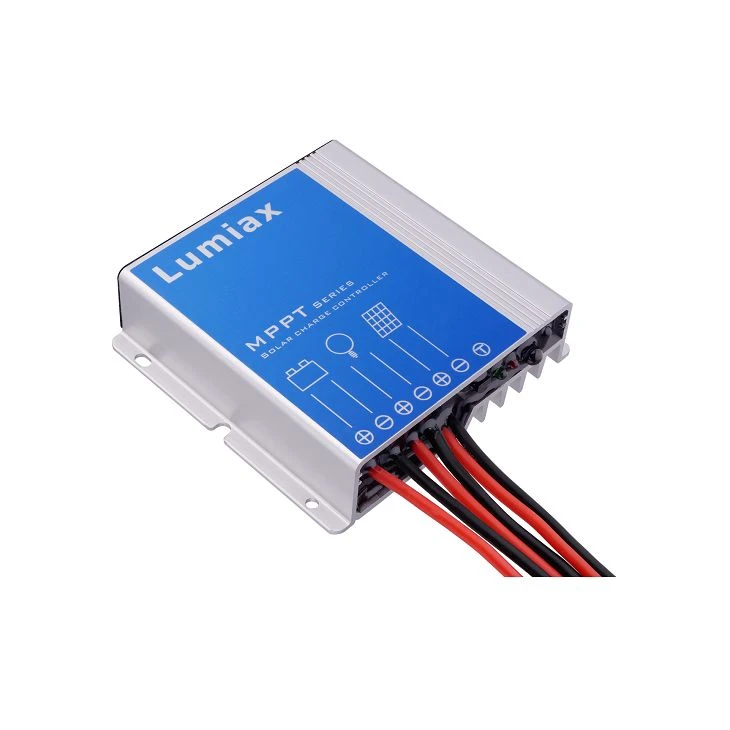

MPPT Solar Charge Controller IP68

Battery Parameters

Max Charging Current

10A

15A

20A

System Voltage

12V

12V/24V automatical recognization

Max input power

130W

200W/400W

260W/520W

Max volt on Bat. Terminal

25V

35V

Battery Type

Lithium, Liquid, Gel, AGM (Programmable, default: Gel)

Liquid, Gel, AGM

MPPT Charging Voltage

<14.5V@25℃

 <14.5/29V@25℃

Boost Voltage

14.5V @25℃

 14.5/29V@25℃

Equalization Voltage

14.8V @25℃

14.8/29.6V @25℃ (Liquid, AGM)

Float Voltage

13.7V @25℃

13.7/27.4V@25℃

Low Volt. Disconnect

10.8~11.8V

10.8~11.8V/21.6~23.6V (Default: 11.2/22.4V）

Reconnect Voltage

11.4~12.8V

11.4~12.8V/22.8~25.6V (Default: 12.0/24.0V）

Overcharge Protect

15.5V

15.5/31.0V

Temp. Compensation

-4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float)

Lithium

Charging voltage target

10.0~17.0V

10.0~32.0V (Programmable)

Charging voltage recovery

9.2~16.8V

9.2~31.8V (Lithium, Programmable）

Low voltage disconnect

9.0~15.0V

9.0~30.0V (Lithium, Programmable）

Low voltage reconnect

9.6~16.0V

9.6~31.0V (Programmable)

0℃ Charging protection

Yes, No, Slow(Default: Yes)

Panel Parameters

Max volt on PV terminal *1

45V

55V

Dusk/Dawn detect volt.

3.0~8.0V

3.0~20.0V (Programmable）

Day/Night delay time

0~30Min (Programmable）

MPPT tracking range   *2

(Battery Voltage + 1.0V)~Voc*0.9

Max tracking efficiency

>99.9%

Load

Output Current

10A

15A

20A

System Parameters

Max charge conversion

96.5%

97.5%

Communication

Infared/RS485/BT                Infared/RS485

Self consumption

6mA

Dimensions

85.8*81*23.1mm、

85.5*45*30mm

85.5*45*42.5mm

Weight

260g

600g

720g

Ambient temperature

-35~+60℃

Ambient humidity

0~100%RH

Protection degree

IP67
