Description

Technical Parameters

Complete isolation-type inverter technology.
Adoption of advanced SPWM technology, pure sine wave output.
Dynamic current loop control technology to ensure the inverter's reliable operation.
Wide DC input voltage range. Low output harmonic distortion(THD≤2%).
LED indicators for input voltage range, normal output & failure state.
Extensive protections: short-circuit, overload, under/over input voltage, over-temperature, and inverter's inner fault identification protections.
The output voltage and frequency can be switched. Optional energy SAV mode(saving mode).
Wide working temperature range (industrial level).
Continuous operation at full power. Low power consumption mode is optional.
Excellent EMC characteristics can be used in the power quality requirements of high occasions.

Parameters:

Item	EPM1500-41	EPM1500-42
Electrical Parameters
Input rated voltage	48V
Input voltage range	43.2~64Vdc
No load current	≤0.3A@48Vdc	≤0.4A@48Vdc
Output voltage	110/127Vac	220/230Vac
Continuous power	1500W
Power 60sec	1600~2300W
Power 1.5sec	2300~3000W
Surge Power	<3000W
Output Mode	Single-phase electricity
Output wave	Pure sine wave
Frequency	50/60Hz
Diatortion THD	THD≤2%(Resisitive load)
Efficiency at full load *1	91.7%	93.6%
Max. efficiency *2	93.2%	94.2%
SAV mode	0.18A; The load is detected every 10sec, if the output power is greaterthan 20W, it will output continuously	0.17A; The load is detected every 10sec, if the output power is greaterthan 20W, it will output continuously
DC current	35A
Shutdown status	＜1mA
Fuse	20A*4
Environment Parameters
Dimension	386.1228124.5mm
Hole Size	φ8mm
Weight	5Kg	4.8kg
Working temperature	-20℃~+50℃
Storage temperature	-35℃~+70℃
Humidity	＜95%(N.C.)
Altitude	＜5000m(Derating to operate accoding to IEC62040 at a height exceeding 1000m)
Other Parameters
Insulation	Between AC output terminals and metal case: ≥550MΩ
Dielectric strenth	Between AC output terminals and metal case: Test voltage AC1500V, 1min
Application	Household appliances, cars, solar system and so on

* 1.The DC input is the rated voltage, and the pure resistive full load power is the continuous output power.
* 2.The DC input is the rated voltage and the maximum efficiency under different load power conditions.
* 3.Select the appropriate inverter according to the voltage standards of different countries.

Hot Tags: 48v pure sine wave inverter 1500w 220vac, China 48v pure sine wave inverter 1500w 220vac manufacturers, pir sensor led light solar power unit, excellent item, maintenance free mppt solar charge controller, reliable mppt solar charge controller, magnetic product, solar charge controller for industrial use

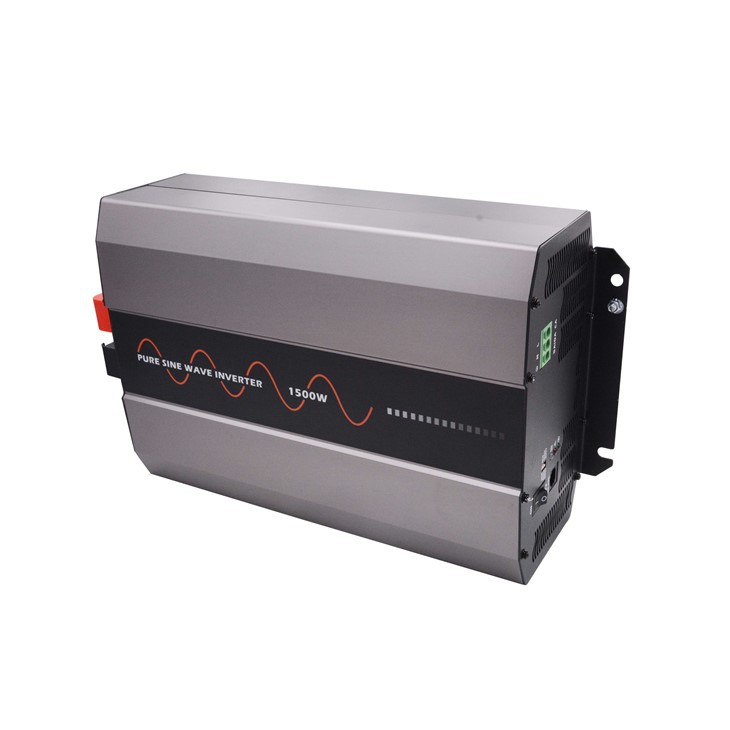

48V Pure Sine Wave Inverter 1500W 220Vac
