· Innovative Maximum Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
· High charge conversion efficiency up to 97.5%
· Adjustable 5-stage timer for load ouput
· Monitoring of the running status and parameters

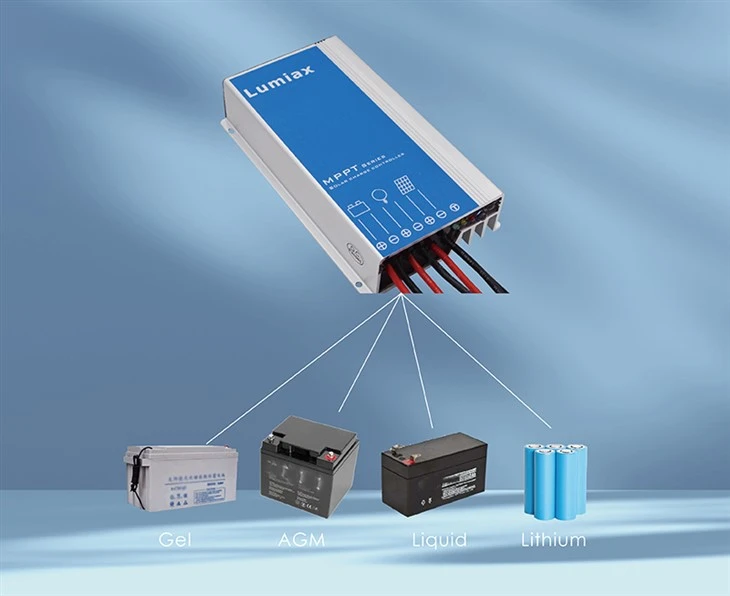

· Suitable for Gel, Liquid, AGM and Lithium battery
· Four stage charging: MPPT, boost, equalization, float
· 0℃ Charging Protection(Lithium)
· When BMS power off because of LVD, it can activate the system automatically
· Day/Night threshold can adjust automatically
· Configurable with an LCD remote programmer (S-Unit)
· Waterproof IP67, Strong and durable aluminum case
· Full automatic electronic protect function
Parameters:
|
Item |
SMR-MPPT1050/RS485/BT |
||
|
Battery Parameters |
Max Charging Current |
10A |
|
|
System Voltage |
12V |
||
|
Max input power |
130W |
||
|
Max volt on Bat. Terminal |
25V |
||
|
Battery Type |
Lithium, Liquid, Gel, AGM (Programmable, default: Gel) |
||
|
Liquid, Gel, AGM |
MPPT Charging Voltage |
<14.5V@25℃ |
|
|
Boost Voltage |
14.5V @25℃ |
||
|
Equalization Voltage |
14.8V @25℃ |
||
|
Float Voltage |
13.7V @25℃ |
||
|
Low Volt. Disconnect |
10.8~11.8V,SOC1~5 |
||
|
Reconnect Voltage |
11.4~12.8V |
||
|
Overcharge Protect |
15.5V |
||
|
Temp. Compensation |
-4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float) |
||
|
Lithium |
Charging voltage target |
10.0~17.0V |
|
|
Charging voltage recovery |
9.2~16.8V |
||
|
Low voltage disconnect |
9.0~15.0V |
||
|
Low voltage reconnect |
9.6~16.0V |
||
|
0℃ Charging protection |
Yes, No, Slow(Default: Yes) |
||
|
Panel Parameters |
Max volt on PV terminal *1 |
45V |
|
|
Dusk/Dawn detect volt. |
3.0~8.0V |
||
|
Day/Night delay time |
0~30Min (Programmable） |
||
|
MPPT tracking range *2 |
(Battery Voltage + 1.0V)~Voc*0.9 |
||
|
Max tracking efficiency |
>99.9% |
||
|
Load |
Output Current |
10A |
|
|
System Parameters |
Max charge conversion |
96.5% |
|
|
Communication |
Infared/RS485/BT |
||
|
Self consumption |
6mA |
||
|

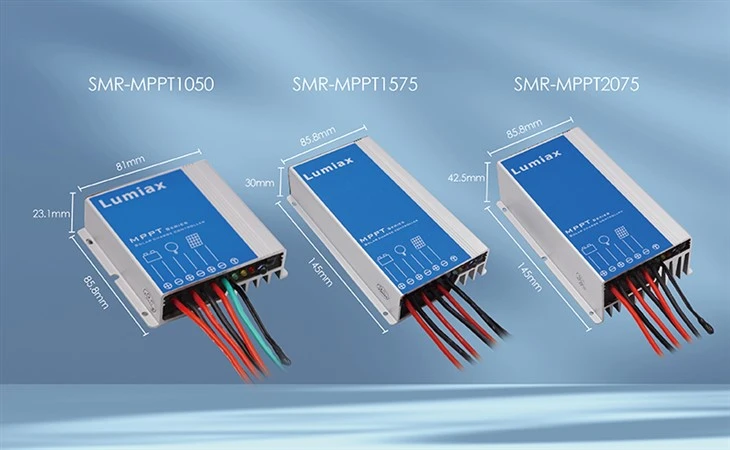

Dimensions |
85.8*81*23.1mm |
||
|
Weight |
260g |
||
|
Ambient temperature |
-35~+60℃ |
||
|
Ambient humidity |
0~100%RH |
||
|
Protection degree |
IP67 |
||
|
Max Altitude |
4000m |
||

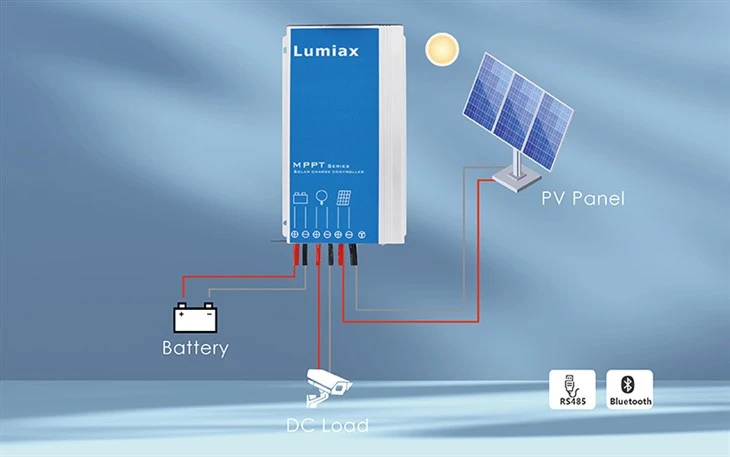

Our MPPT solar charge controllermainly have two kinds, one looks like above picture, it is waterproof IP67, we call it SMR-MPPT series and another kind have LCD display with information shown on the screen, which is installed in home, RV, power station and so on, we named it Magic (MT)series. Now we talk about the first series, SMR-MPPT1575, it suits for lead acid battery and lithium battery, 12/24V system, max module 400W.
It has two Led indicators, green led and red led, green led shows battery charging status and red led shows protection functions. Now in order to meet customers’ demand, we upgrade this item and add yellow indicator, its status tell users battery status, low or normal or over voltage protection/low voltage protection. The new item also increase charging efficiency. Its charging conversion effiency up to 96.5%.
